Quick Deploy Kit for Even Faster Well Pump Installs

Original price $1,680.00 - Original price $2,985.00
Original price
$1,680.00
$1,680.00 - $2,985.00
Current price $1,680.00

BONUS $50 Off When You Size with an RPS Pump Tech. Call 855-560-5670 M-F 8AM to 430PM PST

Quick Deploy Kit Hose/Wire Length: 100' - 10 Ga Wire
Plumbing Options: 4inch Well Seal Assembly

Quick Deploy Kit 3 Month Lead Time Call 855-560-5670 for Pre-Order!

Custom Lengths Available, Call for a Custom Quote!

Quick Deploy Kit Overview
Do you have a big upcoming water project requiring one or multiple large submersible pumps? Want to save time and money and not have to hassle with all the plumbing and wiring connections? Our RPS team takes care of all the prep work, saving you time and eliminating headaches in the field. This includes connecting stainless steel fittings to the lay flat hose, waterproof splicing the submersible pump wire to the well pump, and connecting the pump wire to the lay flat hose with high quality cable straps.

Why use Lay Flat?
Our lay flat hose is a durable and sturdy well hose tailored for the needs of our end customers. Installation is made simple with our Quick Deploy Kit, eliminating the need for costly heavy machinery and heavy 10-20 foot sections of threaded PVC or steel. With a tensile strength of over 6,000 lbs and a working pressure of 420 psi, this versatile hose is well-suited for various pumping applications, from high head to high volume. See our recommendations below for compatible pumps to pair with our lay flat.



Step 1) Find out how deep you're going to drop your pump. Then call one of our Pump Specialists and order the custom length or 100'/200'/300' that is needed for Hose/Wire 855-560-5670

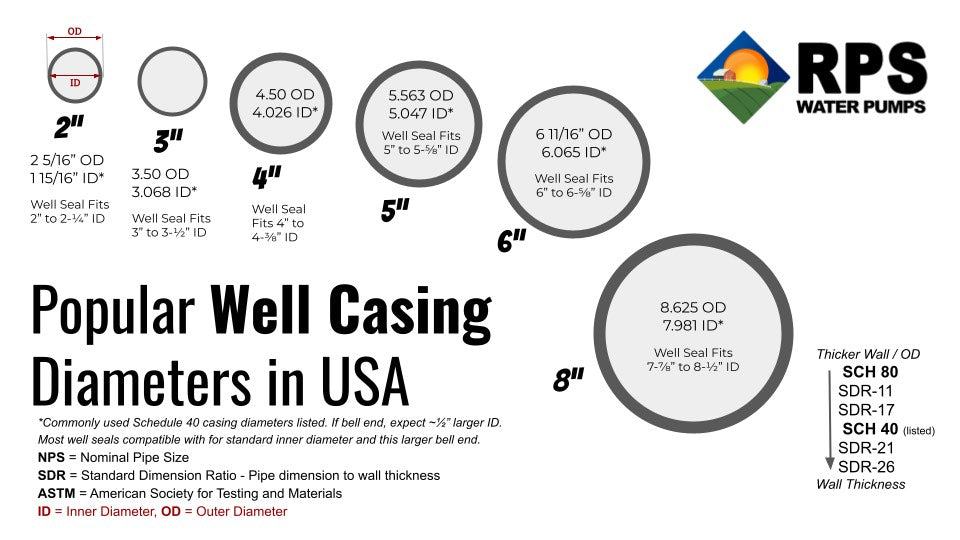

Step 2) Then choose between a Well Seal Assembly or a Well Cap/Pitless Adapter. Measure your well casing diameter to determine which size Well Seal or Well Cap to select.

We recommend these Quick Deploy Kits for pumps from the 05RPS, 07RPS, 10RPS, 18RPS, 25RPS, 35RPS, 55RPS, 60RPS, 80RPS, 90RPS and up to the 150RPS series. That means the GPM rate is roughly between 5-150GPM. If higher volumes and longer lengths, lay flat pipe can be analyzed as 1.5" ID and that diameter can be used for frictional loss calculations. While 1-1/4" is standard for the all the threaded barbs at either end of the pipe, these can be adapted to 1", 1-1/2" and 2" easily using stainless bushings.

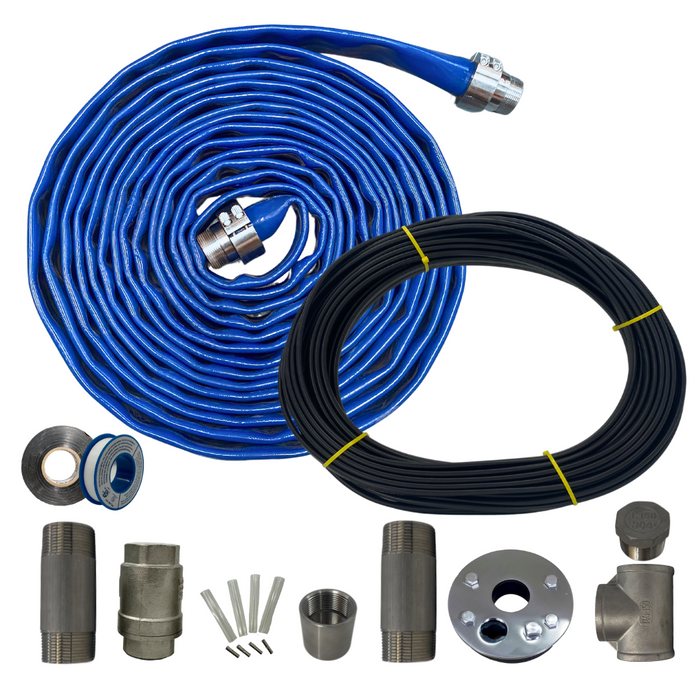

Quick Deploy kits include...

Wire

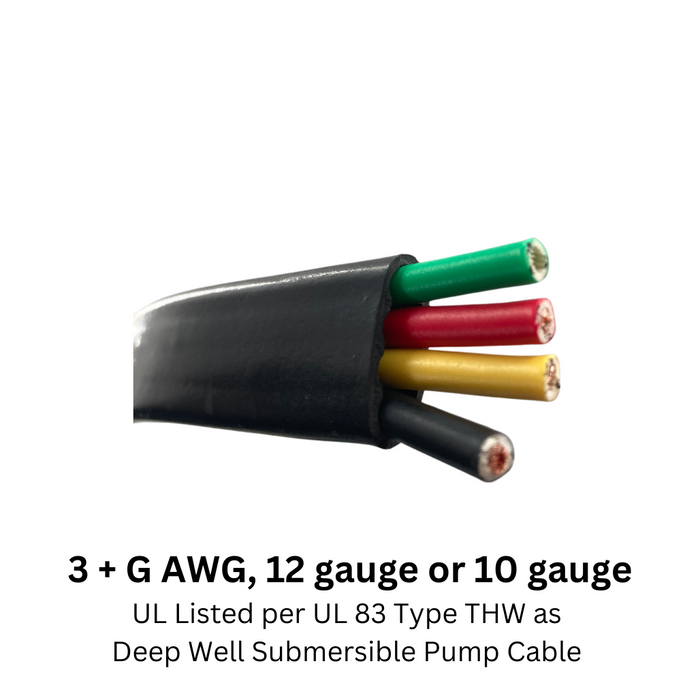

  • Pump Wire - Outer jacketed (12-3+G AWG , 10-3+G AWG, 8-3+G AWG) call for length and wire AWG UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable. Operating temperature range -40°F to 167°F. Annealed bare stranded copper conductors.
  • Waterproof Splice Kit for connecting pigtail off pump to rest of pump wire


Plumbing

  • 1.5" Lay Flat Well Hose with pre-installed 1.25" stepdown SS fittings on both sides. Lay Flat Details
    Operating Temperature: -60°F to 176°F
    Max Length: 1000 feet
    Working Pressure: 425psi
    Burst Pressure: 920psi
    Outer Layer: Hydrolysis Resistant TPU
    Reinforcement/Middle Layer: 100% High Tenacity synthetic polyester yarn
    Inner Layer: Hydrolysis Resistant TPU
    Maximum Drop Setting: 1000 feet
    Tensile Strength: 6,500 lbs

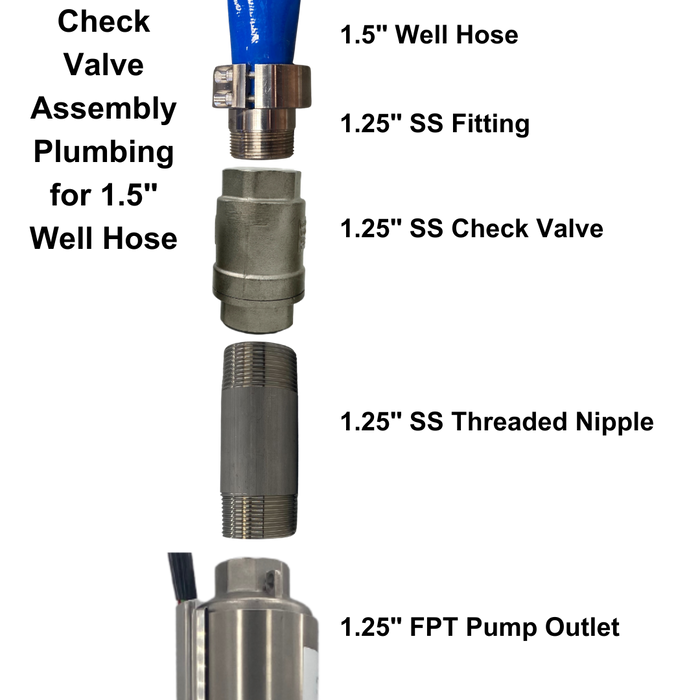

  • Check Valve Assembly 1.25" stainless check valve and 1.25" stainless threaded nipple.

If you choose the Well Seal Option...

  • Well seal assembly (4", 5", 6", 8") with stainless steel well seal, 1.25" stainless threaded tee, 1.25" stainless hex plug, 1.25" stainless threaded nipple, 1.25" stainless coupler to connect to well hose.

If you choose the Pitless Adapter option...

  • Well Cap (4", 5", 6" or 8")
  • 1.25" Pitless Adapter


Additional Parts

  • High Quality Stainless Steel Teflon tape
  • Electrical tape

Tools & Equipment you’ll still need on hand for the quick install:

  • Wire stripper/crimper
  • Flat and Phillips Screwdriver
  • Lighter or heatgun for heatshrinks
  • Simple Multimeter for testing voltages

***If you are here from our sister company RPS Solar Pumps, this Quick Deploy Kit is made to fit with AC well pumps, and is not interchangeable with the solar pump Turnkey Kit***



Specs
  • 304 Stainless Steel Construction
  • Centrifugal Pump End
  • 1.25" FNPT outlet
  • Length
  • Weight
  • Stages
  • 3.86" Diameter, made to fit in well casing 4 inches wide and larger
