RPS Drop-Assist Well Pump Install Tool

RPS Drop-Assist Well Pump Install Tool

Save 29% Save 29%
$69.99
$69.99 - $69.99
$69.99
$49.99
$49.99 - $49.99
$49.99

BONUS $25 Off When You Size with an RPS Pump Tech. Call 855-560-5670 M-F 8AM to 430PM PST

RPS Drop-Assist Well Pump Install Tool

Call (855) 560-5670 for install advice and information about what kits and products this tool works best with!

For even more Foolproof DIY Installs for First-Timers & Old-Timers Alike!

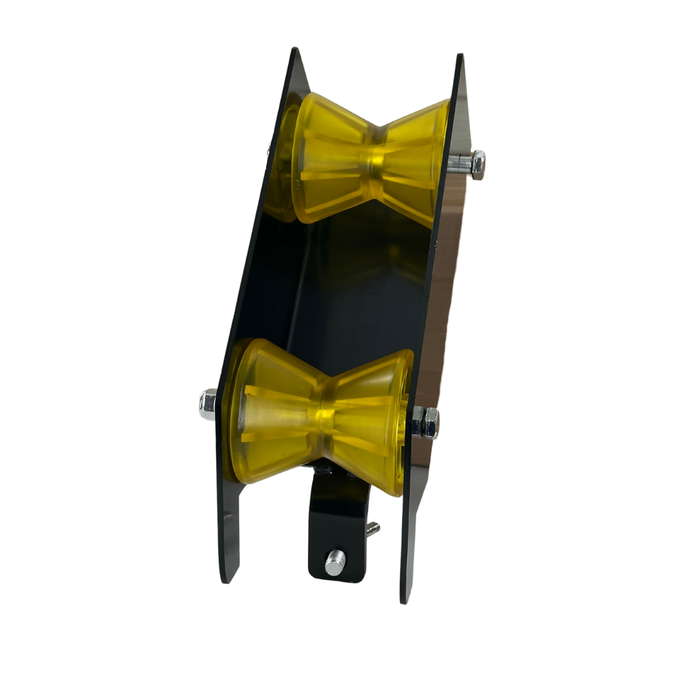

Make installing or removing your pump faster, safer, and smoother with the RPS Drop-Assist Well Pump Pulling & Install Tool. This rugged, versatile lifting aid helps you easily lower or pull heavy submersible pumps without damaging your well casing or fighting awkward angles. It’s especially useful for deeper wells (less than 400 ft deep) or heavier pump systems—keeping installation controlled, secure, and efficient.

Perfect for solo installers or small crews, the Drop-Assist Well Pump Pulling & Install Tool takes the strain out of setup. With its durable design, it allows one person to safely manage what would normally be a two-person job. Pair it with any RPS Water Pumps Pump for a professional-grade installation experience that protects your equipment and gets your water supply up and running faster.

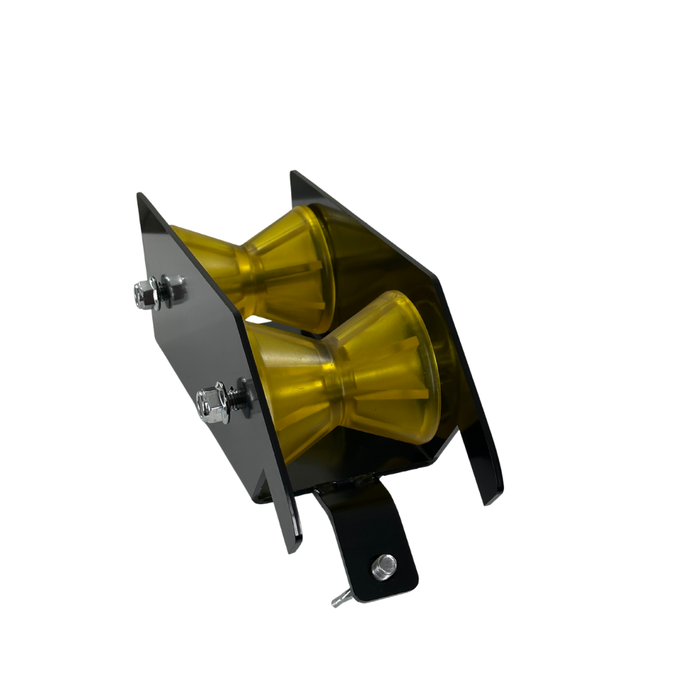

  • Powder coated high-strength steel construction
  • Built-in polyurethane rollers
  • Works on well casings with inner diameter larger than 4.6" and casing thickness less than 1.62"
    • NOTE: This tool can be modified to work on 4" inner diameter casings, but no smaller.
  • Suitable for installs on wells as deep as 400'.
  • While you may be able to use this tool for deeper installs, weight is often too cumbersome to install solo or with a two-person crew.

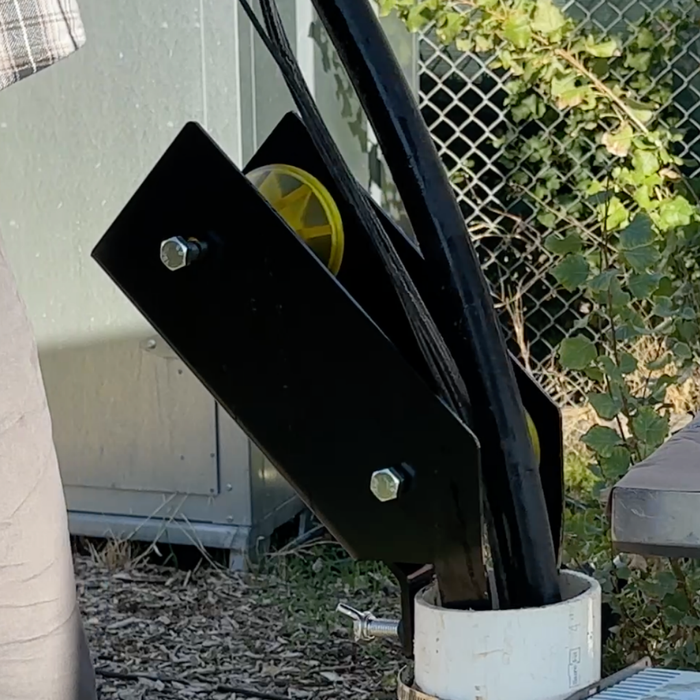

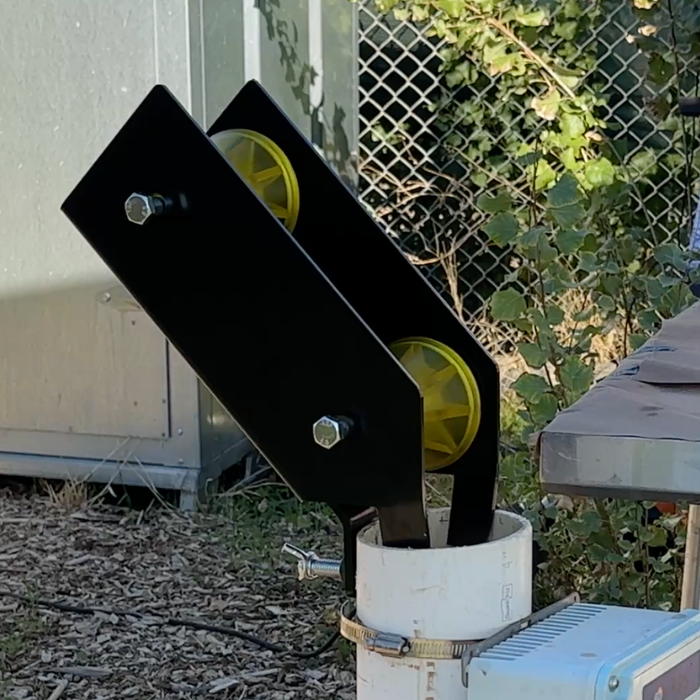

  • To install Drop-Assist to well casing:

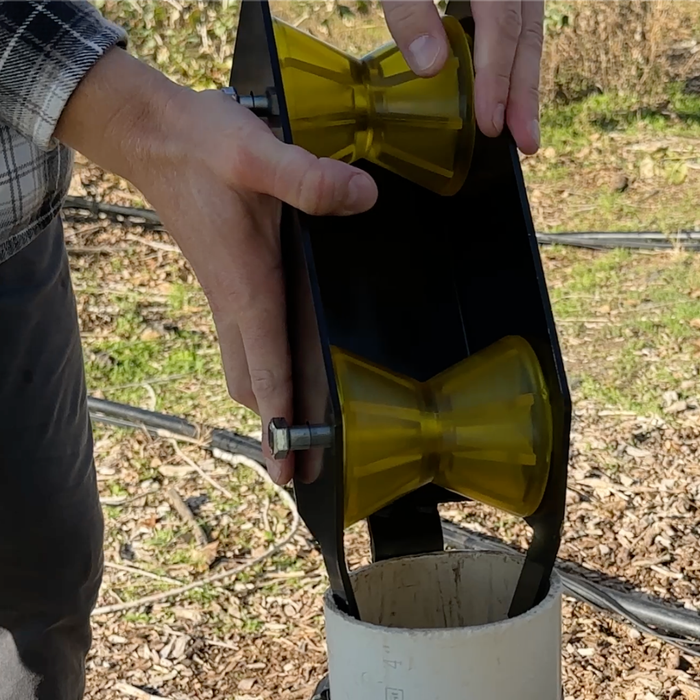

    1. Insert flanges on bottom of Drop-Assist tool into the well casing.
    2. Tighten down butterfly locking screw on Drop-Assist tool until the screw end makes secure contact with casing. DO NOT OVER-TIGHTEN SCREW, OVER-TIGHTENING LOCKING SCREW CAN DAMAGE PVC CASINGS.
    3. Check for side-to-side and front-to-back play to make sure Drop-Assist tool is secured to well casing.
    4. Now you're ready to install your pump!
  • If pump diameter is too large to insert into well casing while the Drop-Assist is attached:
    1. Carefully hold the pump and place the section of drop pipe that is directly above the pump over the rollers. While holding drop pipe and Drop-Assist tool, insert pump into well casing and attach Drop-Assist tool to casing once you have enough clearance to insert lower metal flanges. Continue to hold pump suspended below lip of well casing until Drop-Assist is secure.
    2. Tighten down butterfly locking screw on Drop-Assist tool until the screw end makes secure contact with casing. DO NOT OVER-TIGHTEN SCREW, OVER-TIGHTENING LOCKING SCREW CAN DAMAGE PVC CASINGS.
    3. Check for side-to-side and front-to-back play to make sure Drop-Assist tool is secured to well casing.
    4. Now you're ready to install your pump!
