Everything But the Pipe Easy Well Pump Install Kit - Well Seal Version - One and Done

NOTE: You must choose a pump separately that fits your specific project, this kit DOES NOT include a pump

Save $751.00 Save $420.00
Original price $878.99
Original price $797.99 - Original price $1,924.99
Original price $878.99
Current price $458.99
$458.99 - $2,271.00
Current price $458.99

BONUS $50 Off When You Size with an RPS Pump Tech. Call 855-560-5670 M-F 8AM to 430PM PST

One and Done Rope/Wire Length: 100 foot
Plumbing Options: 4inch Well Seal Assembly / 1" adapter plumbing

Already got the pipe? RPS has got you covered on the other items to successfully install your submersible pump! Our "Everything but the Pipe One-and-Done" is just like our regular One-and-Done, except that it doesn't include piping. If you plan on using your own PVC, steel, lay flat , or locally sourced poly pipe - this is for you!

In a remote area without access to a hardware store? Get everything you need to install an RPS Water Pump right to your doorstep, thats why we call it the One-and-Done, one click and you're done shopping!

Step 1) Choose between 100, 200, 300, 400 and 500 foot lengths for your wire and rope.

Step 2) Then choose a Well Seal Assembly size. Measure your well casing diameter to determine which size Well Seal to select (How-To Guide). You'll also be selecting the type of adapter plumbing you require if you're using poly pipe. If your poly pipe is 1", choose the 1" adapter plumbing. If your poly pipe is 1.25", choose the 1.25" adapter plumbing.

We recommend that you use 1" pipe for any GPM rate is roughly between 5-15GPM. If you're purchasing a pump flow rate higher than 15 GPM, you'll typically need at least 1.25" pipe. Unsure which pipe to use? Call one of our technicians on staff and they can do a frictional loss calculation for your based on flow rate and length of pipe 855-560-5670

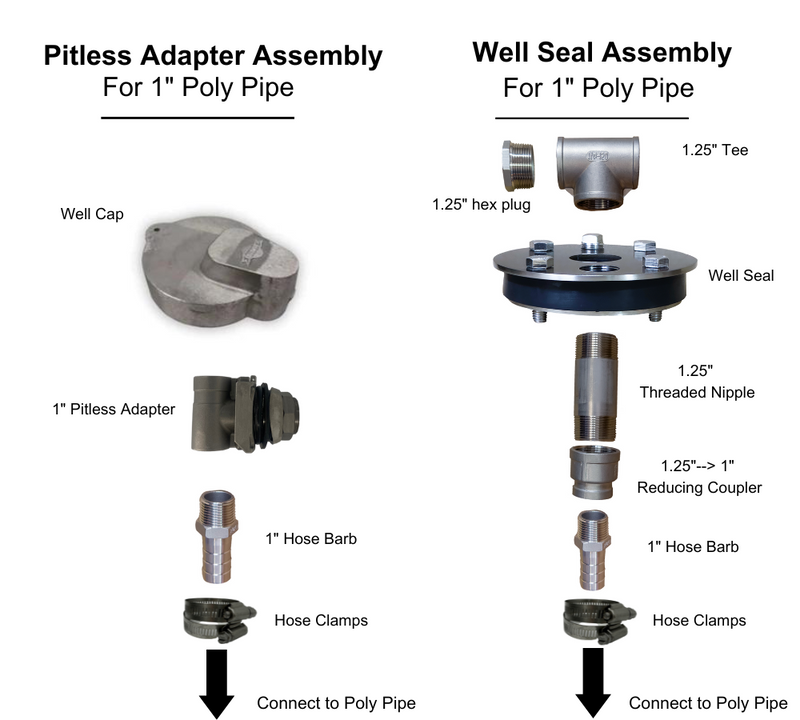

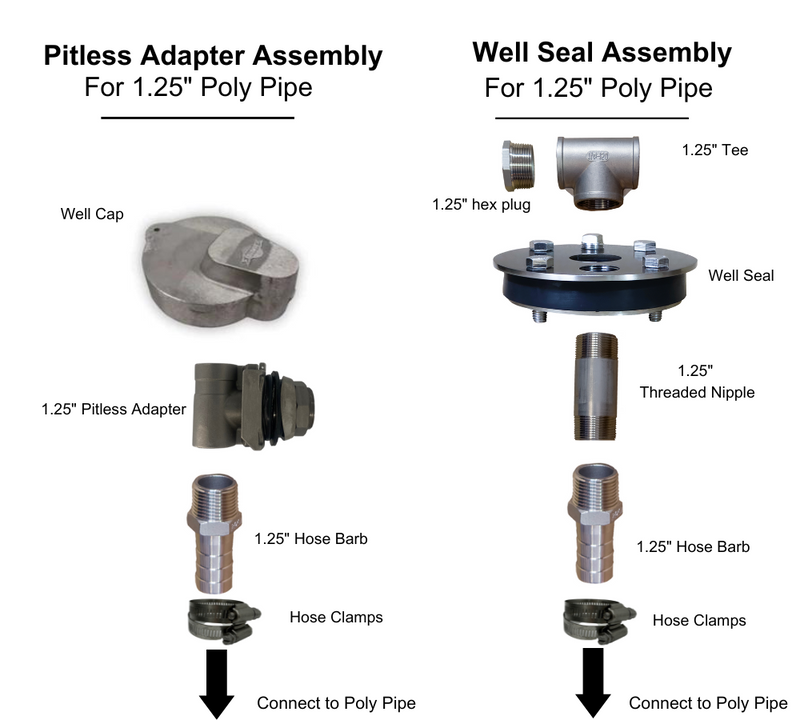

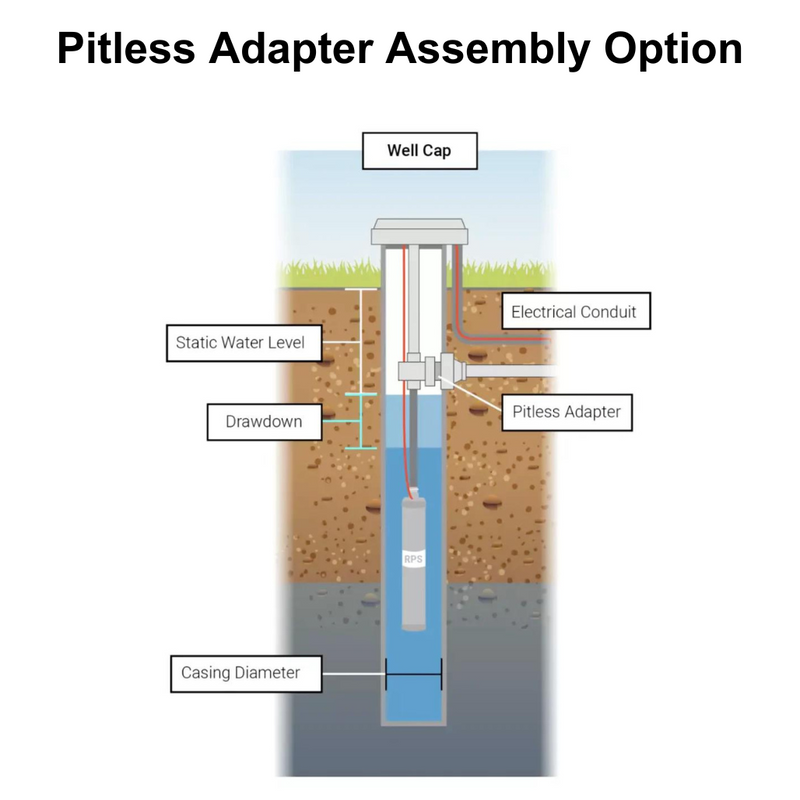

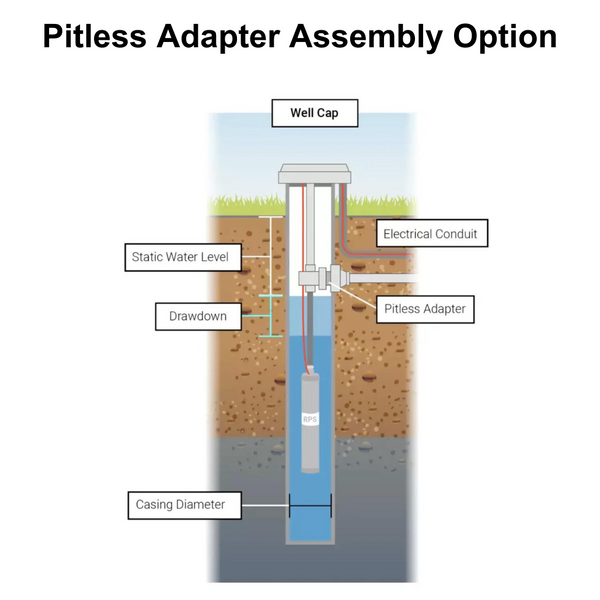

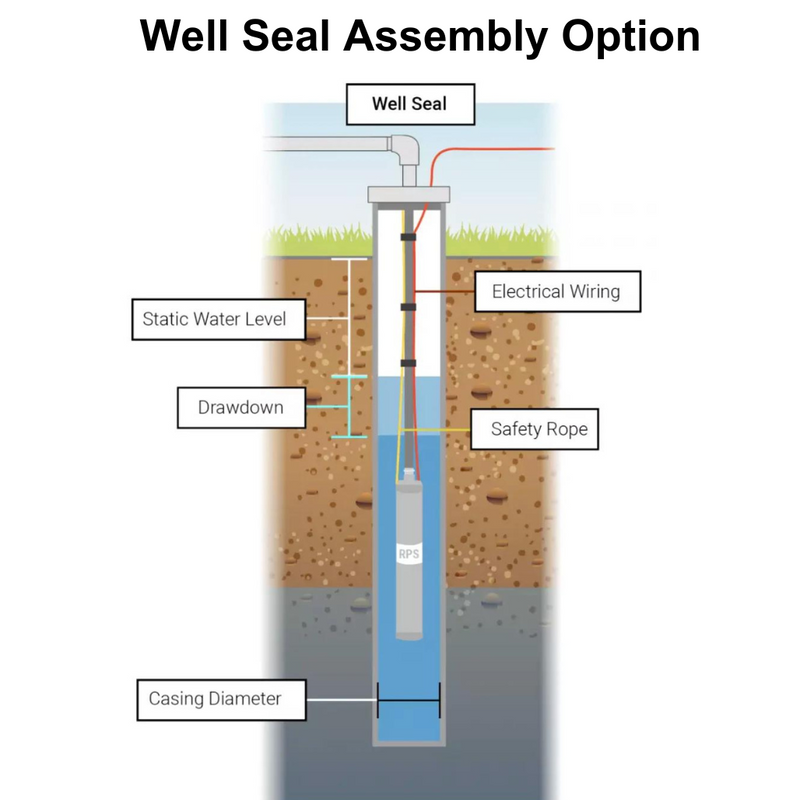

If you need a Well Cap/Pitless Adapter, we have a separate listing that you can buy from here. See the pictures for differences between the two options, the easy way to tell the difference is "well seals route pipe through the top of the well" and "pitless adapters route pipe through a hole made a few feet down on the side of the well, below frost list (this is for freeze prone areas to keep your pipe from icing up)".

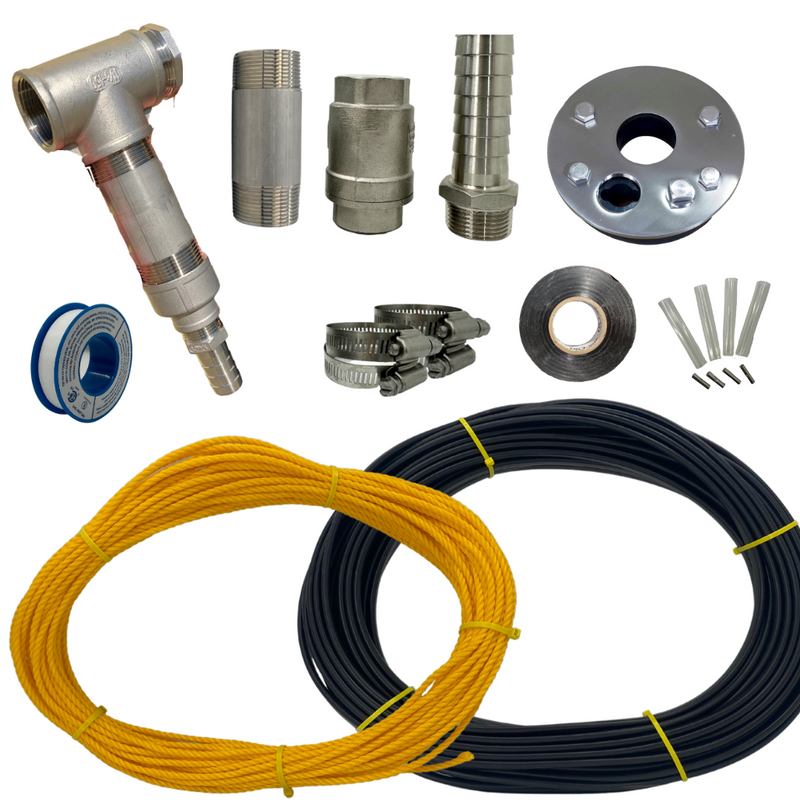

"Everything But the Pipe One-and-Done Well Seal Assembly" kits include...

Wire

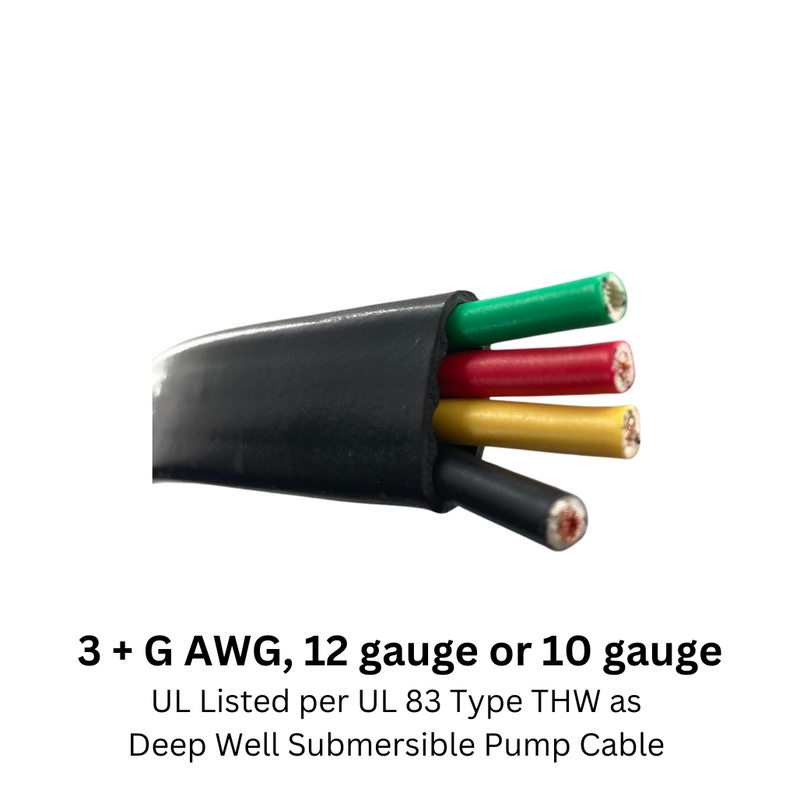

  • Pump Wire - Outer jacketed (12-3+G AWG for 100 and 200 for kits, 10-3+G AWG for 300 foot kits).  UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable. Operating temperature range -40° C to 75° C. Annealed bare stranded copper conductors.
  • Waterproof Splice Kit for connecting pigtail off pump to rest of pump wire

Plumbing

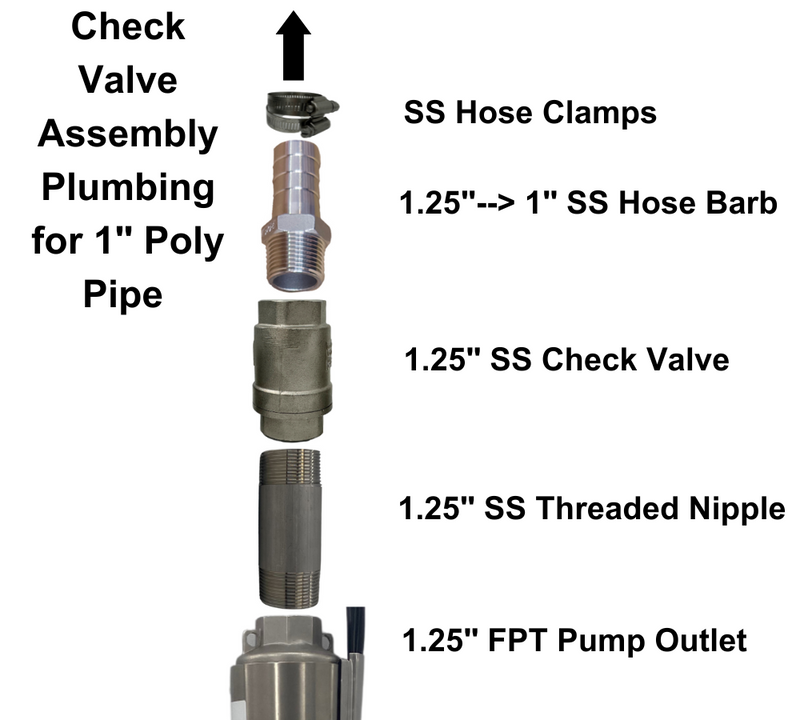

  • Check Valve Assembly 1.25" stainless threaded coupler, 1.25" stainless check valve, 1.25"stainless hose barb(for 1.25" poly pipe kits) or 1.25"--> 1" reducing stainless hose barb (for 1" poly pipe kits), and stainless hose clamps.

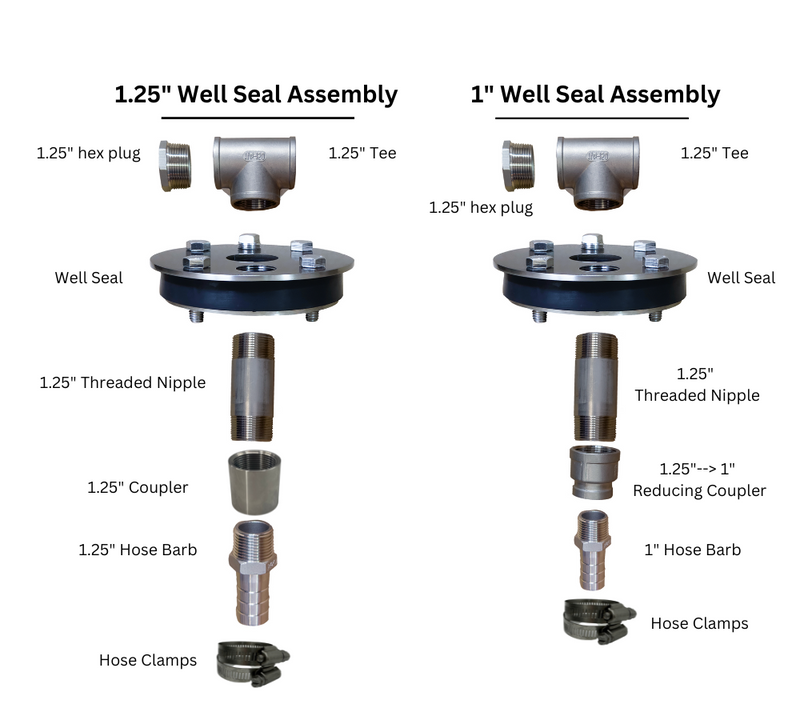

Well Seal Assembly...

  • Well seal assembly (4", 5", 6", 8"*) with stainless steel well seal, 1.25" stainless threaded nipple, 1.25" stainless threaded tee, 1.25" hose barb (for 1.25" poly pipe kits) or 1.25"--> 1" stainless coupler + 1" stainless hose barb ( for 1" poly pipe kits), and stainless hose clamps for the barbed coupling
  • * 8" well seal is cast iron


    Additional Parts

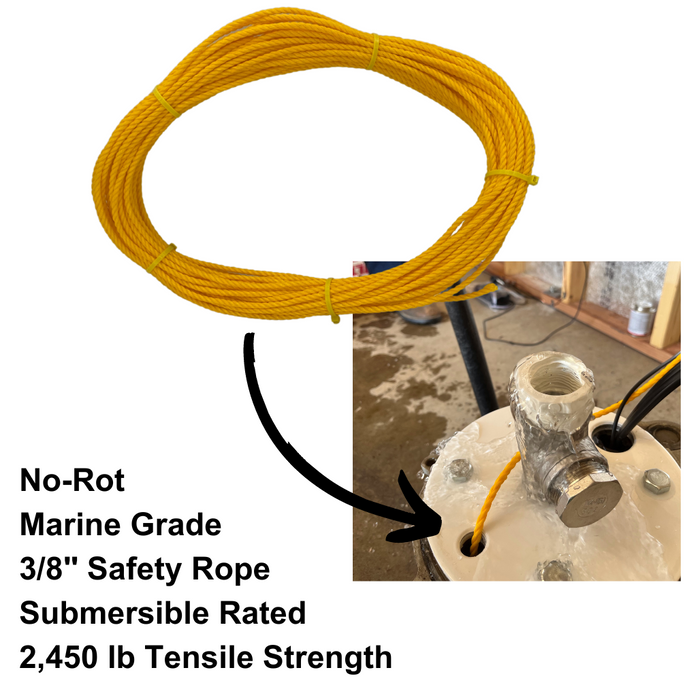

    • Poly-braid no-rot safety rope, marine grade, submersible rated 3/8" diameter, 2,450lb tensile strength
    • Teflon tape
    • Electrical tape



    Tools & Equipment you’ll still need on hand for the quick install:

    • Wire stripper/crimper
    • Flat and Phillips Screwdriver
    • Lighter or heatgun for heatshrinks, heating poly pipe for tighter hose clamps
    • Small socket set as it helps get hose clamps tighter
    • Simple Multimeter for testing voltages

    ***If you are here from our sister company RPS Solar Pumps, this One and Done Kit is made to fit with AC well pumps, and is not interchangeable with the solar pump Turnkey Kit***

    Shipping, Returns and Warranty

    Ultra Fast Shipping

    We know how crucial getting water to your property is - that's why we offer FREE SHIPPING with every order over $100, which should arrive to your doorstep within 3-5 business days anywhere in the contiguous USA.

    2-Year System Warranty:

    Rural Power Systems Inc. (RPS Water Pumps) warrants to the owner for a period of twenty-four (24) months from the date of purchase (“Warranty Period”) such RPS Products will be free from material defects in material and workmanship. During the Warranty Period, RPS Water Pumps will repair or replace any defective part(s) at no cost to the owner. Learn More.

    What does our Water Assurance Guarantee mean?

    We offer a money back guarantee that our pump systems will provide you water when sized by one of our engineers to your well, desired setup and final total dynamic pumping head. We do require static water levels, drawdown and pressure requirements are accurately estimated during the sizing process, that installation follows the instructions of the RPS User Manual, and that you give RPS engineers a chance to troubleshoot any issues.

    Returns

    Customer shall inspect the RPS Product within 30 days of receipt and will be deemed to have accepted the RPS Product unless you notify RPS Water Pumps of your intent to return the product. You may return the RPS Products purchased, for any reason, for a full refund up to thirty (30) days after the date of purchase. The RPS Products must be unused, in new condition, and you must pay the return shipping or return to product to RPS Water Pumps in person. For your convenience, we are happy to email printable shipping labels and deduct the cost (often a discounted rate vs. retail store rate) from your refund amount.

    After 30 days and up to sixty (60) days after purchase, a full refund is not available, but transferrable store credit is available for returned products. Unfortunately, we do not accept returns past 60 days and are unable to offer refunds, however, your product warranty is transferable in event the system is sold during the Warranty Period.

    As a condition of this return policy, you agree to give us the opportunity to troubleshoot the issue(s) with the RPS Product to work out any issues prior to return.

    Free Shipping on Orders $100+

    Need a Pump ASAP? 2nd Day Air Available

    Rather a Friendly Voice? Not Sure on Sizing?

    Our famous support team is here to help! Call us at 855-560-5670

    Kits Made for DIYers

    Short on time? In a remote area without access to a hardware store? Get everything you need to install an RPS Water Pump right to your doorstep, thats why we call it the One-and-Done, one click and you're done shopping!

    Step 1) Choose between 100, 200 or 300 foot lengths for your wire, pipe and rope.

    Step 2) Determine whether you need the 1" poly pipe (up to 15 GPM) or the 1.25" poly pipe (15-25 GPM). If you need the 200 or 300 foot One and Done length, and want higher GPM, but you're unsure which pipe diameter will work for you - either use a frictional loss calculator or call one of our technicians who will make the calculation for you and recommend a pipe diameter 855-560-5670

    Step 3) Then choose between a Well Seal Assembly or a Well Cap/Pitless Adapter. Measure your well casing diameter to determine which size Well Seal or Well Cap to select.

    We recommend the 1" One-and-Done kits for pumps from the 05RPS, 07RPS, and 10RPS series. That means the GPM rate is roughly between 5-15GPM. If you're purchasing a pump flow rate higher than 15G GPM, like the 13RPS, 18RPS and 25RPS, you'll need the larger pipe diameter 1.25" One-and-Done.

    The outlet of the 05RPS, 07RPS, 10RPS, 13RPS, 18RPS and 25RPS series are 1.25 inch. For the 1" One and Dones, we've already accounted for the reduction in plumbing size needed to fit to a 1" pipe with the parts included.

    One-and-Done kits include...

    Wire

    Pump Wire - Outer jacketed (12-3+G AWG for 100 and 200 for kits, 10-3+G AWG for 300 foot kits).  UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable. Operating temperature range -40° C to 75° C. Annealed bare stranded copper conductors.

    Waterproof Splice Kit for connecting pigtail off pump to rest of pump wire


    Plumbing

    Poly Pipe rolls 160psi  (1" IPS) or  250psi(1.25" IPS). Both are NSF 14/61 Rated for Potable Drinking Water MADE IN THE USA

    Check Valve Assembly 1.25" stainless threaded coupler, 1.25" stainless check valve, 1.25"stainless hose barb(for 1.25" poly pipe kits) or 1.25"--> 1" reducing stainless hose barb (for 1" poly pipe kits), and stainless hose clamps.

    If you choose the Well Seal Option...

    Well seal assembly (4", 5", 6", 8") with stainless steel well seal, 1.25" stainless threaded nipple, 1.25" stainless threaded tee, 1.25" hose barb (for 1.25" poly pipe kits) or 1.25"--> 1" stainless coupler + 1" stainless hose barb ( for 1" poly pipe kits), and stainless hose clamps for the barbed coupling.

    If you choose the Pitless Adapter option...

    Well Cap (4", 5", 6" or 8")

    1" stainless steel hose barb and 1" Pitless Adapter Assembly (for 1" poly pipe kits) or 1.25" stainless steel hose barb and 1.25" Pitless Adapter Assembly (for 1.25" poly pipe kits)


    Additional Parts

    Poly-braid no-rot safety rope, marine grade, submersible rated 3/8" diameter, 2,450lb tensile strength

    Teflon tape

    Electrical tape



    Tools & Equipment you’ll still need on hand for the quick install:

    Wire stripper/crimper

    Flat and Phillips Screwdriver

    Lighter or heatgun for heatshrinks, heating poly pipe for tighter hose clamps

    Small socket set as it helps get hose clamps tighter

    Simple Multimeter for testing voltages

    ***If you are here from our sister company RPS Solar Pumps, this One and Done Kit is made to fit with AC well pumps, and is not interchangeable with the solar pump Turnkey Kit***



    NEXT GEN WELL CARE

    3X Longer Lifetime than traditional cast iron

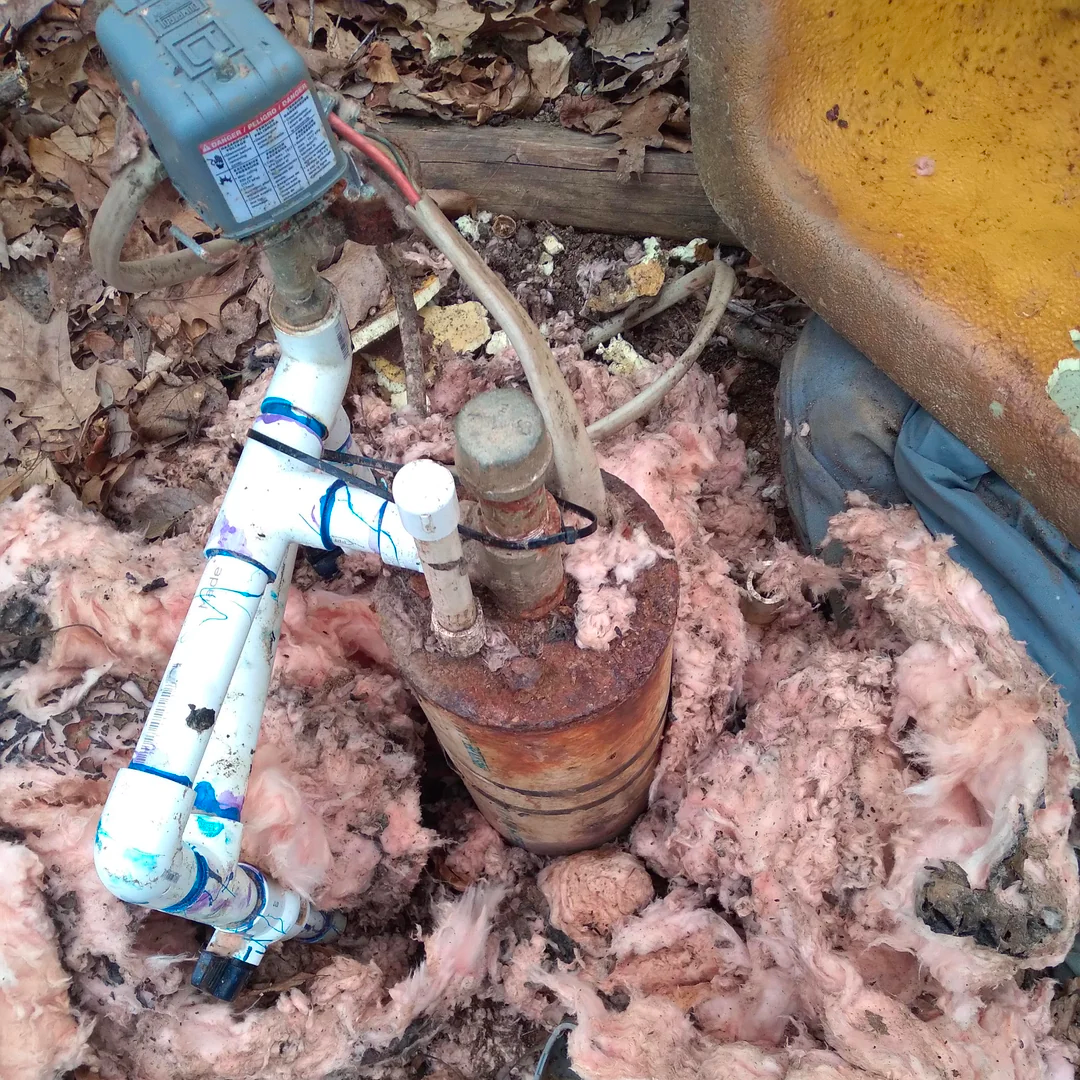

    BEFORE

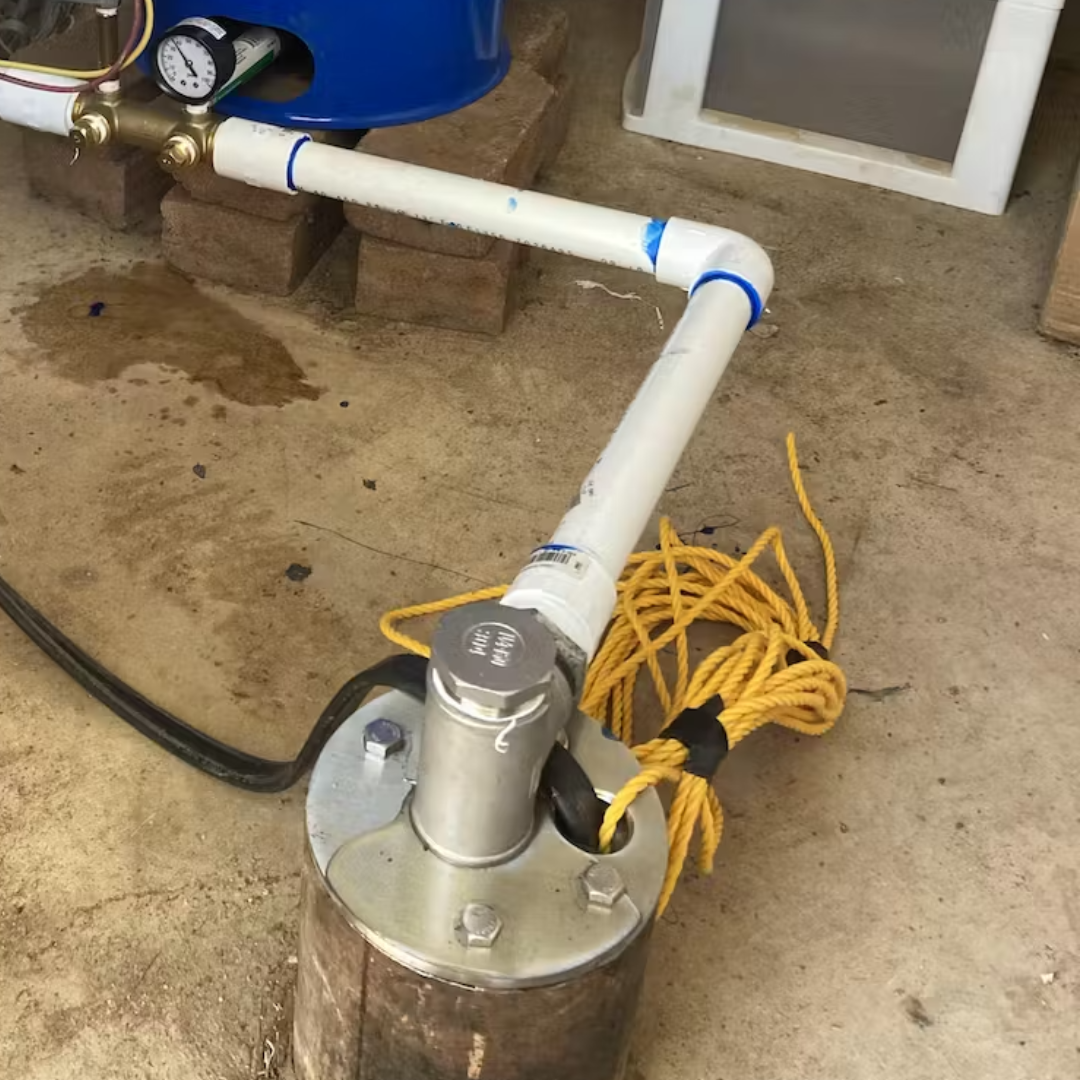

    AFTER

    ⭐ ⭐ ⭐ ⭐ ⭐

    "Replaced my seized up-rusty-iron well seal with an RPS-High quality-SS-Well Seal. My wellhead now shines like a new silver dollar."

    91%

    said they felt their well is in better shape now than before installing stainless plumbing

    Info On Well Seals

    Auxiliary hole for wiring

    Rubber gasket expands for tight fit

    Compatible with 1" to 1-1/4" drop pipe

    SEE BELOW FOR HELP WITH SIZING

    4" well seal: 1-1/4"* main through hole, 3/4" NPT auxiliary conduit hole, 1/2" NPT vent

    5" well seal: 1-1/4"* main through hole, 1" NPT auxiliary conduit hole, 1/2" NPT vent

    6" well seal: 1-1/4"* main through hole, 1" NPT auxiliary conduit hole, 1/2" NPT vent

    8" well seal: 1-1/4"* main through hole, 1" NPT auxiliary conduit hole, 1/2" NPT vent



    *For 1-1/4" plumbing, actual diameter opening 1.70".  Use reducing couplers when using 1in drop pipe.



    Note on Varying Well Casing Sizes for Well Seals

    Depending on the material of lining used, varying pipe sizes and the age of the well our engineers have observed that all 6" wells sometimes do not all have the exact same measurements. This holds true for 4", 5" and 8" wells too. A 2-year-old 6" well in Indiana may not have the exact same measurements as a 6" 65-year-old well in Texas. Not to worry! The black gasket around the bottom of RPS stainless steel well seals will swell with exposure to water to help seal off slight inconsistencies in measurements. In rare cases, you can also add some foam tape around the gasket for a more exact fit on wells with "unique" measurements. And as long as the lip of the well seal is sitting over the well casing, you well pump will be safely supported.
