stainless steel well seal assembly installed on green artificial turf background

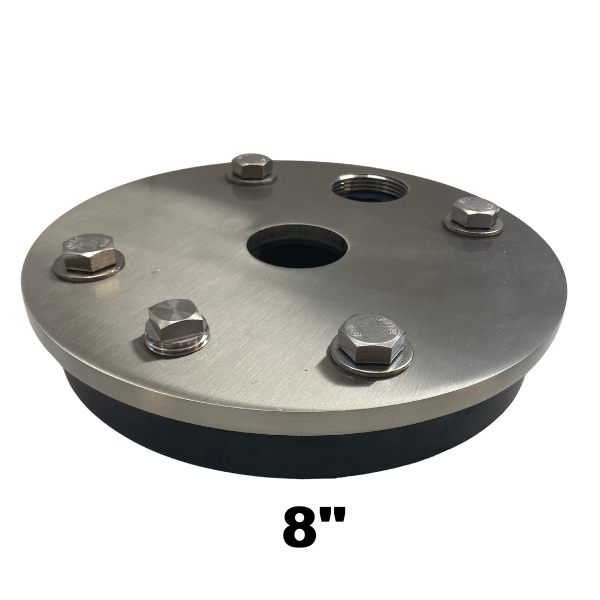

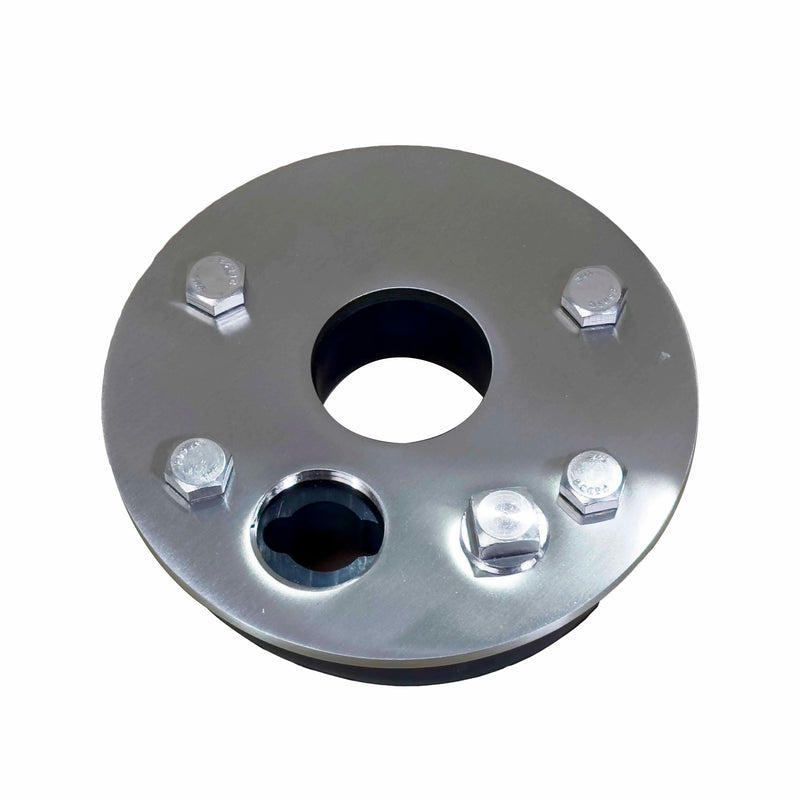

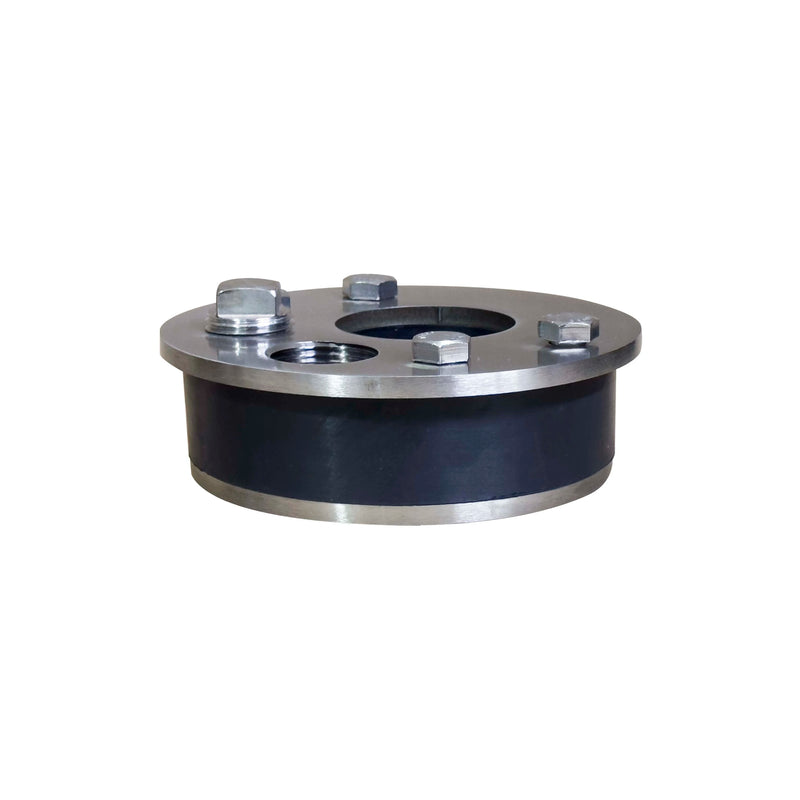

Stainless Steel Well Seal Assembly

Save 20% Save 20%
$147.99
$147.99 - $198.99
$147.99
$117.99
$117.99 - $158.99
$117.99
Well Seal Size: 4 inch
Hose Barb Size: 1 inch



YOUR PUMP IS STAINLESS - THE WELL SEAL SHOULD BE TOO

RPS engineers wanted to improve on the typical cast iron or plastic well seal, we listened to our customers' feedback and recognized the need for a well seal that lasts for the life of the well. So the stainless steel well seal was born! Unlike other well seals that rust within 10-20 years and can cause damage to your well system. You won't have to worry about the costly and dangerous process of removing part of your well casing just to replace a rusted-out seal. Made of high quality 304 stainless steel.  Absolutely no UV degradation, compare to PVC.  High weight load capacity - perfect for hanging submersible pumps in deep wells.

Available with 1" for 1 1/4" Stainless Barbed insert down hole for Poly Pipe Connections. Plumbing through well seal is 1.25". Threaded Tee / Elbow outlet is 1.25". Easy to neck down or bump up to larger diameters for above ground piping.

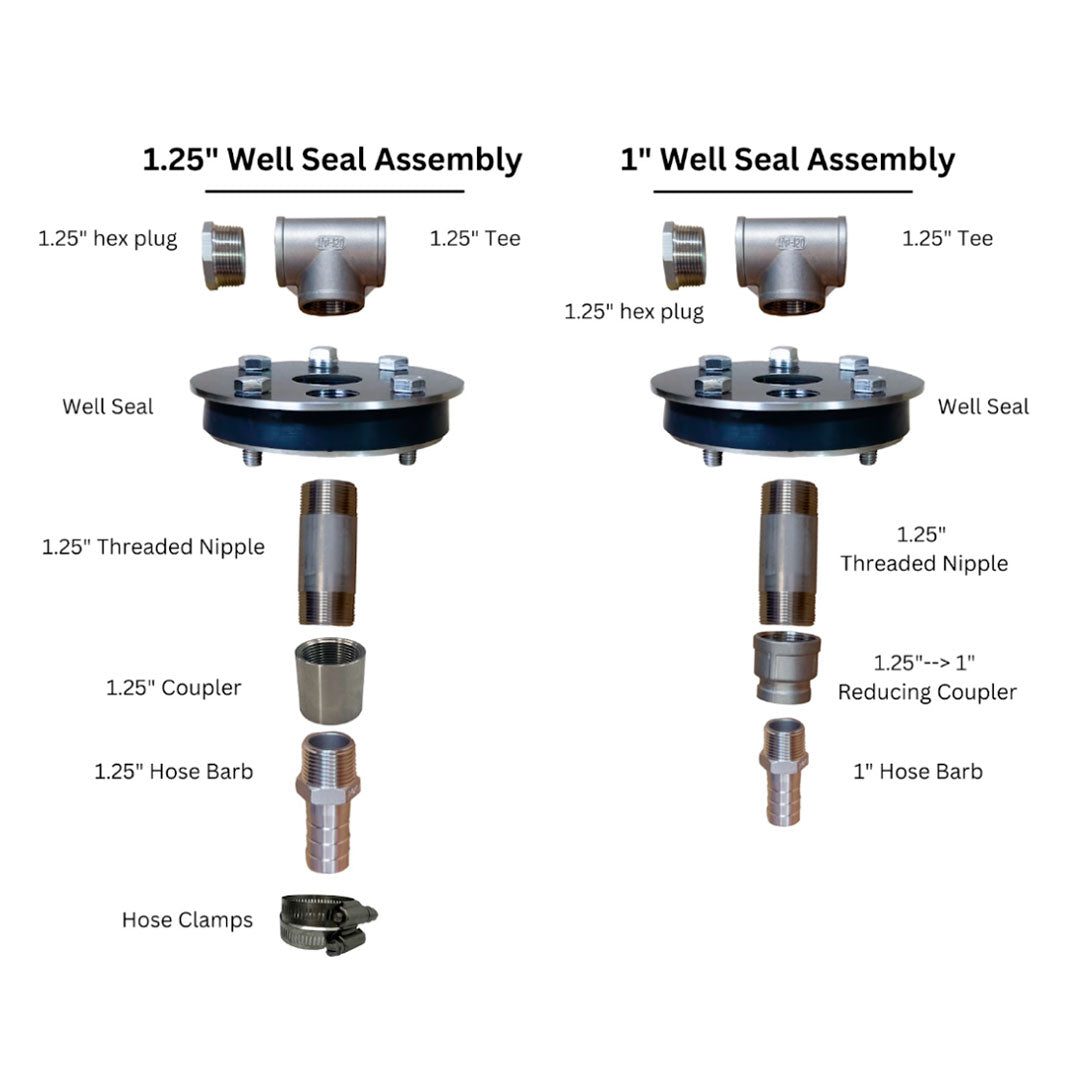

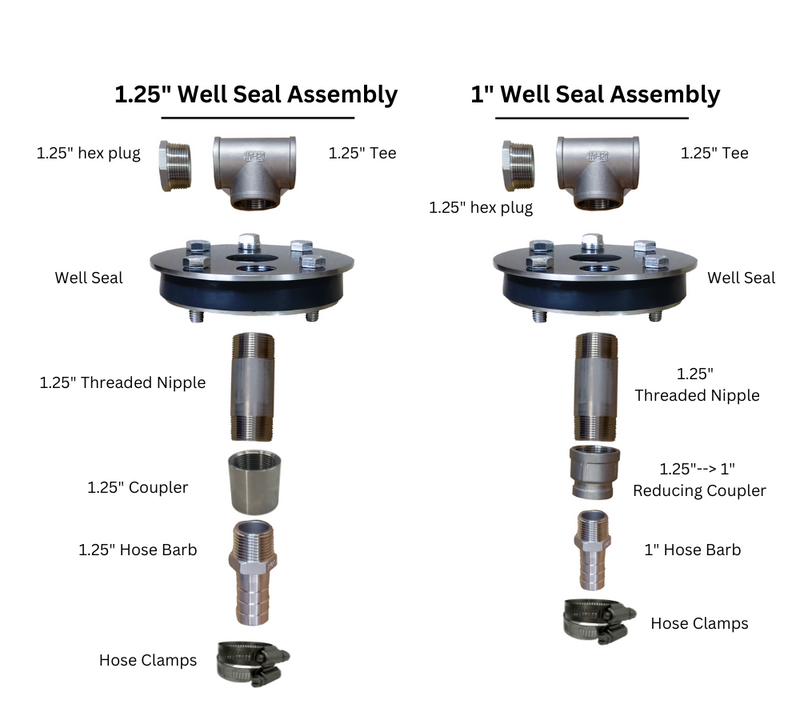

Includes..
Stainless Well Seal
Stainless Threaded Coupler
Stainless Threaded Tee or Elbow
Stainless Coupler (or reducer for 1" barb selection)
Stainless Hex Plug 1.25"
Stainless Hose Clamps

Stainless Hose Barb 1.25"



Info On Well Seals

  • Auxiliary hole for wiring
  • Rubber gasket expands for tight fit
  • Compatible with 1" to 1-1/4" drop pipe

SEE BELOW FOR HELP WITH SIZING

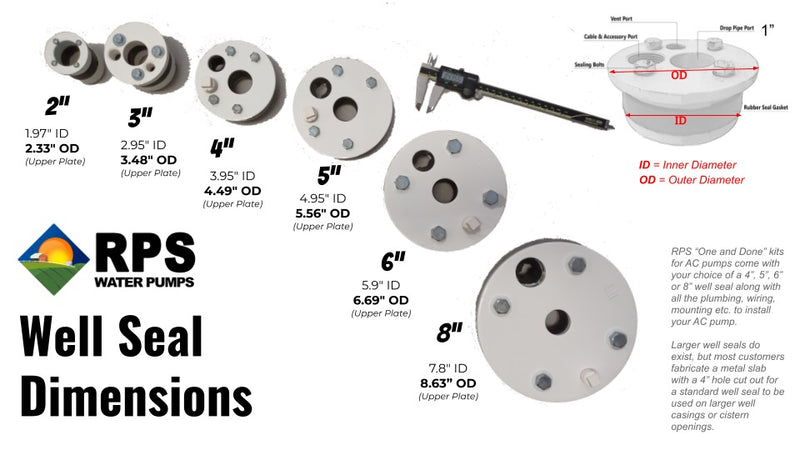

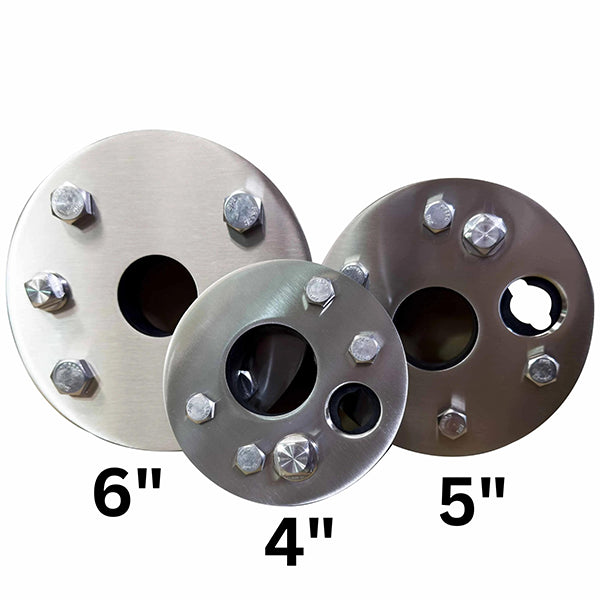

4" well seal: 1-1/4"* main through hole, 3/4" NPT auxiliary conduit hole, 1/2" NPT vent

5" well seal: 1-1/4"* main through hole, 1" NPT auxiliary conduit hole, 1/2" NPT vent

6" well seal: 1-1/4"* main through hole, 1" NPT auxiliary conduit hole, 1/2" NPT vent

8" well seal: 1-1/4"* main through hole, 1" NPT auxiliary conduit hole, 1/2" NPT vent



*For 1-1/4" plumbing, actual diameter opening 1.70".  Use reducing couplers when using 1in drop pipe.



Note on Varying Well Casing Sizes

Depending on the material of lining used, varying pipe sizes and the age of the well our engineers have observed that all 6" wells sometimes do not all have the exact same measurements. This holds true for 4", 5" and 8" wells too. A 2-year-old 6" well in Indiana may not have the exact same measurements as a 6" 65-year-old well in Texas. Not to worry! The black gasket around the bottom of RPS stainless steel well seals will swell with exposure to water to help seal off slight inconsistencies in measurements. In rare cases, you can also add some foam tape around the gasket for a more exact fit on wells with "unique" measurements. And as long as the lip of the well seal is sitting over the well casing, you well pump will be safely supported.

Shipping, Returns and Warranty

Ultra Fast Shipping

We know how crucial getting water to your property is - that's why we offer FREE SHIPPING with every order over $100, which should arrive to your doorstep within 3-5 business days anywhere in the contiguous USA.

2-Year System Warranty:

Rural Power Systems Inc. (RPS Water Pumps) warrants to the owner for a period of twenty-four (24) months from the date of purchase (“Warranty Period”) such RPS Products will be free from material defects in material and workmanship. During the Warranty Period, RPS Water Pumps will repair or replace any defective part(s) at no cost to the owner. Learn More.

What does our Water Assurance Guarantee mean?

We offer a money back guarantee that our pump systems will provide you water when sized by one of our engineers to your well, desired setup and final total dynamic pumping head. We do require static water levels, drawdown and pressure requirements are accurately estimated during the sizing process, that installation follows the instructions of the RPS User Manual, and that you give RPS engineers a chance to troubleshoot any issues.

Returns

Customer shall inspect the RPS Product within 30 days of receipt and will be deemed to have accepted the RPS Product unless you notify RPS Water Pumps of your intent to return the product. You may return the RPS Products purchased, for any reason, for a full refund up to thirty (30) days after the date of purchase. The RPS Products must be unused, in new condition, and you must pay the return shipping or return to product to RPS Water Pumps in person. For your convenience, we are happy to email printable shipping labels and deduct the cost (often a discounted rate vs. retail store rate) from your refund amount.

After 30 days and up to sixty (60) days after purchase, a full refund is not available, but transferrable store credit is available for returned products. Unfortunately, we do not accept returns past 60 days and are unable to offer refunds, however, your product warranty is transferable in event the system is sold during the Warranty Period.

As a condition of this return policy, you agree to give us the opportunity to troubleshoot the issue(s) with the RPS Product to work out any issues prior to return.

Free Shipping on Orders $100+

Need a Pump ASAP? 2nd Day Air Available

Rather a Friendly Voice? Not Sure on Sizing?

Our famous support team is here to help! Call us at 855-560-5670

Take the 60 Second Pump Sizing Quiz

Need more clarity?

In this video, different sizes of the stainless steel well seal are showcased, with an emphasis on its benefits over traditional options. The functions of a well seal are also discussed, including holding the drop pipe in place and preventing contamination. The video compares plastic and cast iron well seals, highlighting the drawbacks of each material.

NEXT GEN WELL CARE

3X Longer Lifetime than traditional cast iron

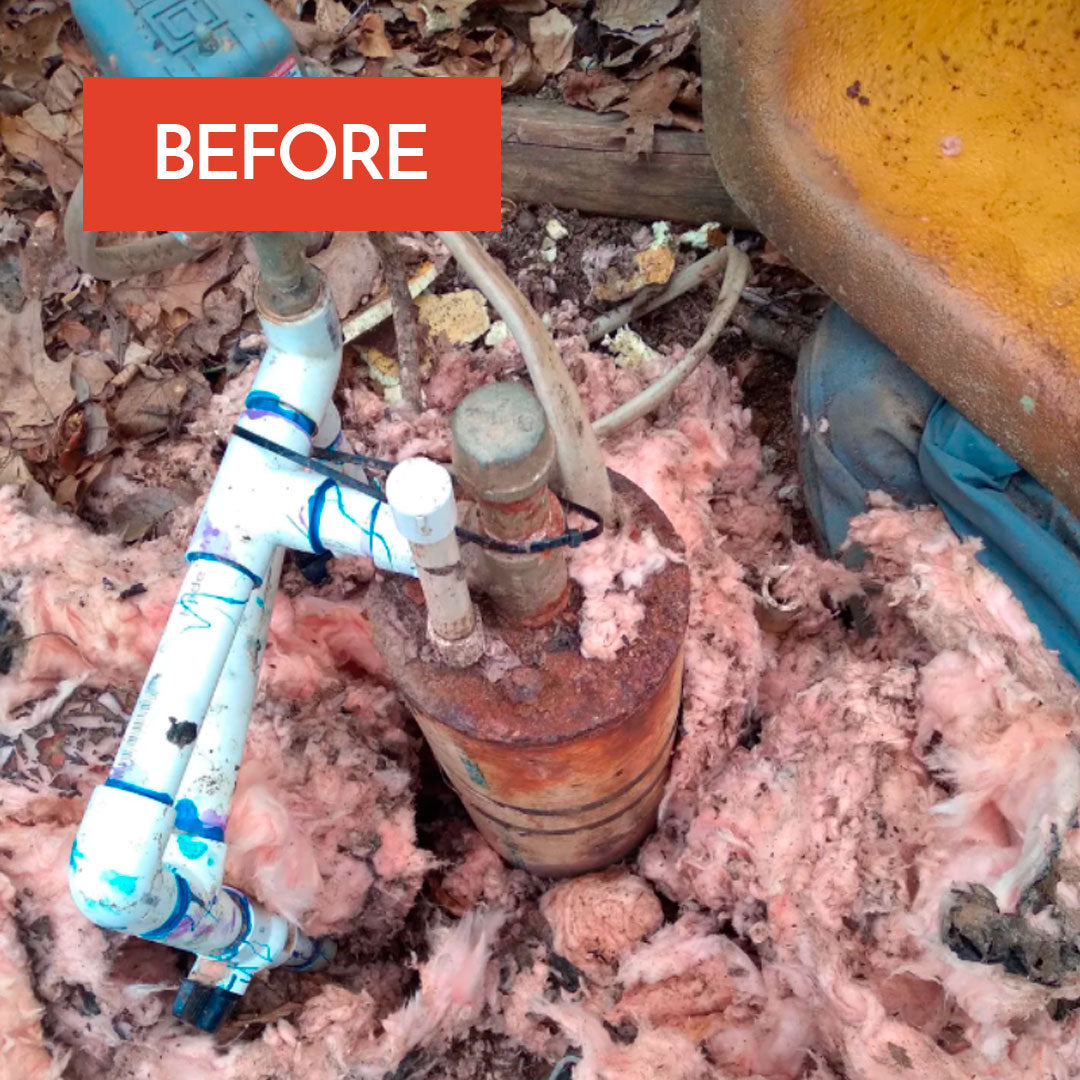

Old rusted pump surrounded by insulation material and leaves before maintenance.

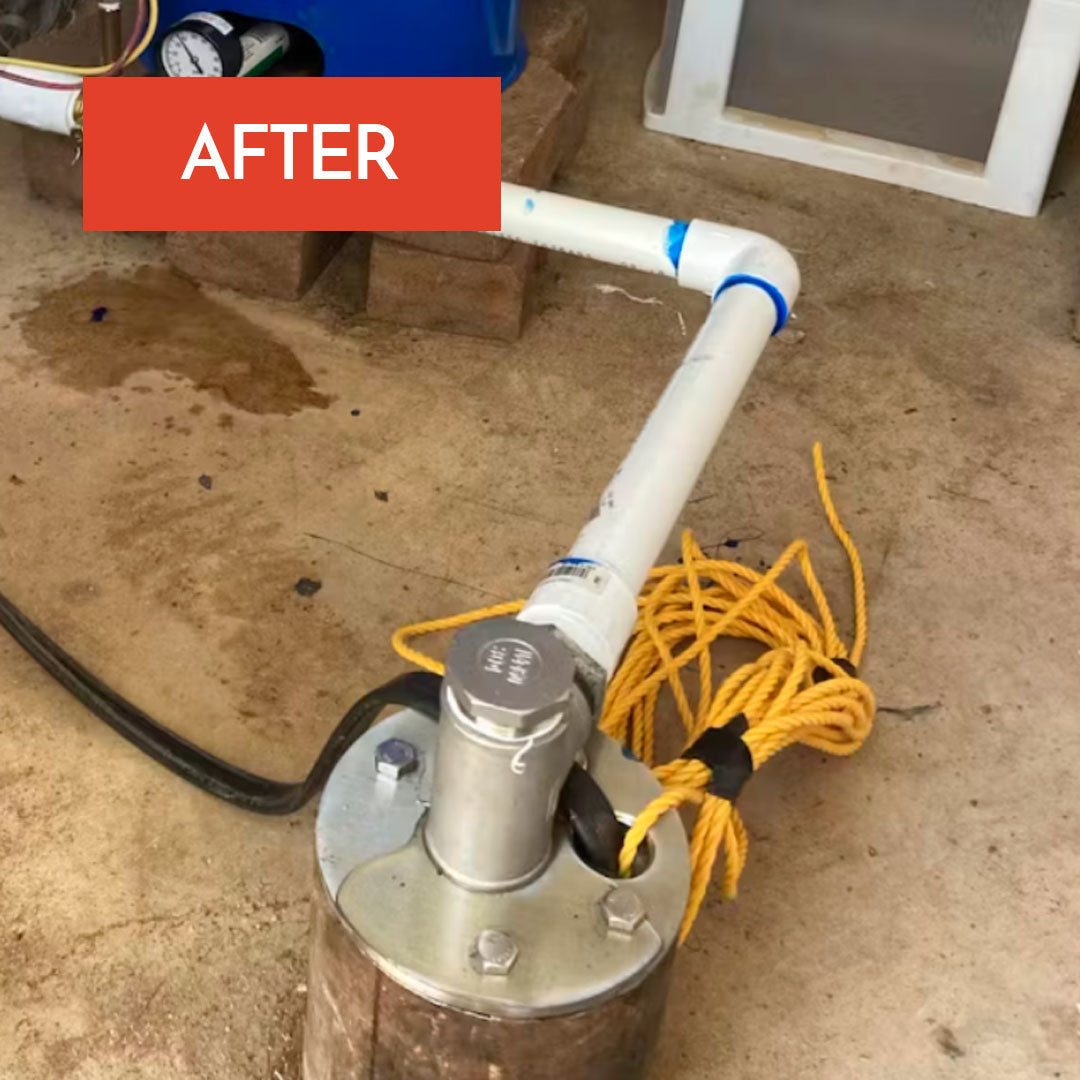

Improved water well setup with new plumbing and pump installation, featuring a pressure gauge and secure yellow cord, labeled "After".

91% said they felt their well is in better shape now than before installing stainless plumbing

91% said they felt their well is in better shape now than before installing stainless plumbing

Five-star review for RPS Water Pumps 4 inch stainless well seal by verified user, John Daniel from Jacksonville, US, praising ease of installation and durability, dated 10/07/2024.Five-star review for RPS Water Pumps 4 inch stainless well seal by verified user, John Daniel from Jacksonville, US, praising ease of installation and durability, dated 10/07/2024.

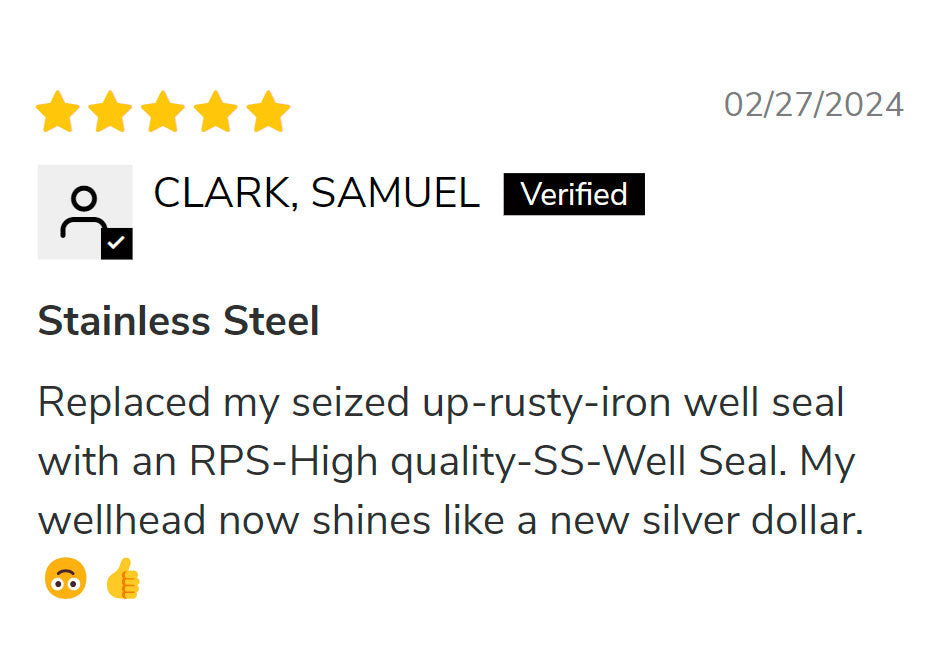

Five star review by verified customer Samuel Clark praising an RPS high-quality stainless steel well seal for replacing a rusty iron seal and enhancing wellhead appearance.

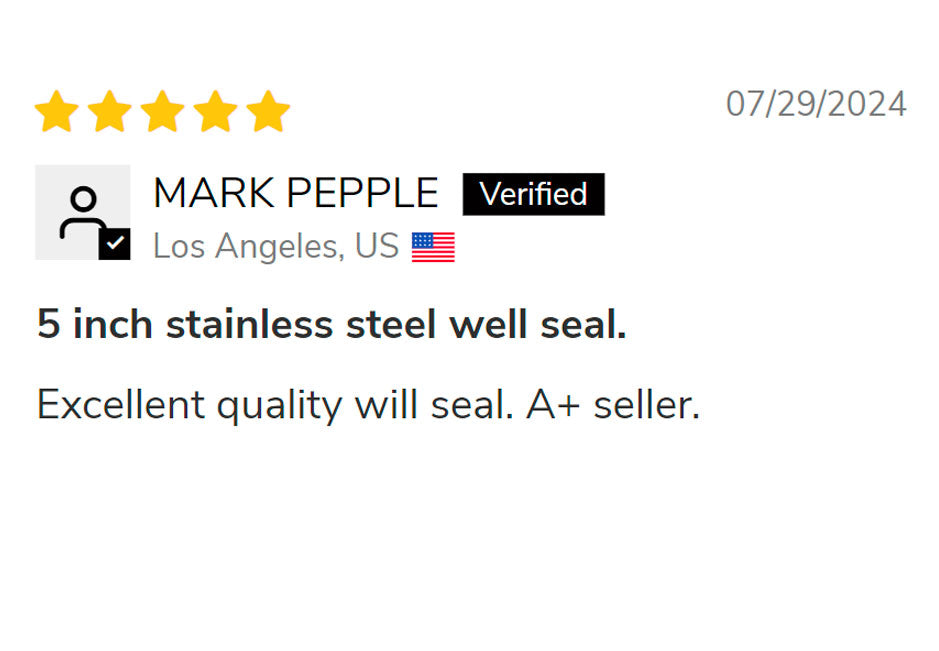

5 star review for an RPS Water Pumps 5-inch stainless steel well seal featuring excellent quality feedback from a verified buyer in Los Angeles, US.

Frequently Asked Questions

  • Well caps are used for wells that utilize a pitless adapter buried below the frost line to prevent water lines from freezing. If you know that your well has a pitless adapter, or you are getting a new well drilled in a cold climate, you will most likely need a well cap.

  • Well seals are used in warmer climates where freezing water lines are less likely to be an issue. Well seals slide over the top of the well casing and utilize a rubber gasket to seal into place. If your well does not use a pitless adapter, and frozen water lines are not a concern, a well seal is a good choice for you!
  • Many opt for cheaper well seals made of PVC or cast iron, but there are downsides to these options.

  • While PVC and ABS are cost effective, exposed PVC and ABS well seals are less durable, and prone to failure from UV degradation when exposed to the sun for long periods of time.

  • Cast iron well seals can last for years, but are also likely to experience corrosion, which can make it difficult to access your well pump for repair or replacement.

  • With a stainless steel well pump, you can be confident that your well will remain sealed and sanitary, with no concerns of UV degradation or corrosion.

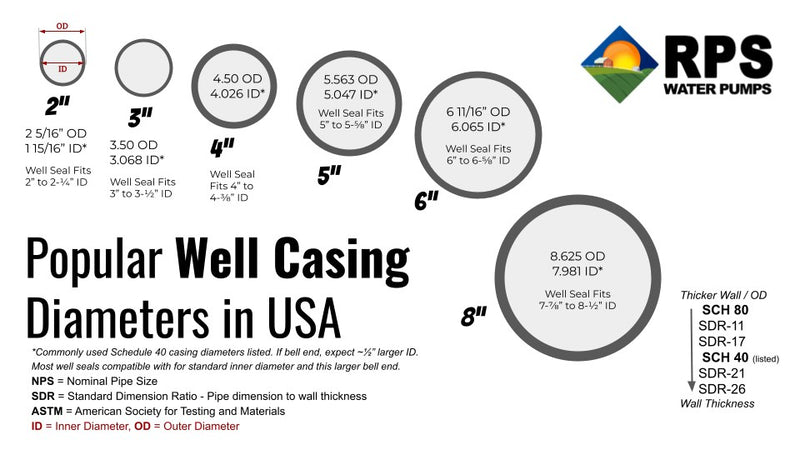

  • Residential wells commonly have 4”, 5”, and 6” casings.  Older wells or agricultural wells tend to use larger casings, with 8”, 10”, and 12” (or bigger diameters) casings, depending on the amount of water needed for pumping.

  • Our engineers have observed that wells sometimes do not all have the exact same measurements, as dimensions can vary depending on the lining material used, varying pipe sizes, and the age of the well. Not to worry! The black gasket around the bottom of RPS stainless steel well seals swells with exposure to water to help seal off slight inconsistencies in measurements.

  • In rare cases, you can also add some foam tape around the gasket for a more exact fit on wells with "unique" measurements. As long as the lip of the well seal is sitting over the well casing, your well pump will be safely supported.
Do you need other plumbing parts for your next DIY installation?

Do you need other plumbing parts for your next DIY installation?

Check out our One-and-Done drinking water safe poly pipe install kit!

Check Now »

Do you need other plumbing parts for your next DIY installation?

Do you need other plumbing parts for your next DIY installation?

Check out our One-and-Done drinking water safe poly pipe install kit!

Check Now »

Our Pledges to You

  1. Be a company our Grandfathers would have trusted. The trend of ‘outsourcing’ customer support after the sale is a trend we wholeheartedly oppose. We are an American, family run company and our USA engineers support you before and after the sale.

  2. No sales pressure. Ever. Nobody in the company is paid on commission. We think this is important. Their role is to make sure they find the right pump for you and your well. If we don’t have a livestock solar pump that will suit your needs, we will help you find a solution elsewhere. Our job is to help get you water.

  3. Reliable Water. All manufactured products have occasional issues and we can’t claim to be perfect. However, we are proud of a near perfect track record in getting our customers water. This starts with selling a pump sized for your usage with our Water Assurance Plan and promptly addressing warranty issues to get you up and pumping again quickly.

  4. Give you the power! When you control your ability to pump water out of the ground, whether that is in the field or at home, it makes you more resilient and independent. We are here to help educate you about solar water pumping for livestock and our systems over the phone, with our manual - so you can install yourself. Take control of your water supply today.

  5. Fight for the American rancher. RPS is a David & Goliath story of a small American company fighting against a big European pump corporation that cares more about profits then the longevity of their pumps and the sky-high price for ranchers. Thanks to all our customers for the support of small business vs. foreign corporations trying to profit off some of the hardest working people in our great nation.

-The RPS Team

Customer Reviews

Based on 19 reviews
95%
(18)
0%
(0)
5%
(1)
0%
(0)
0%
(0)
100.0
100.0
R
Richard J Barcelona II (Phoenix, US)
A beautiful piece of well art

My first impression, "Wow, that's beautiful!" Then, "Now that's sturdy!" Yes, I'm glad I spent the extra on the SS- 8inch well cap. It will be a fitting crown to my casing. Lol

L
Luke Cloughen (Cape Coral, US)

Stainless Steel Well Seal

J
Jacob McCoy (Lincolnton, US)
Good cap bad fittings.

The cap itself is fine but the stainless pipe and fittings they supply are worthless. The threads are too loose to seal properly no matter how much teflon tape you use. Even in their own promotional pictures they show their fittings leaking. Save your money and just buy the cap from RPS and get good brass fittings elsewhere.

D
Dan Chamberlain (Afton, US)
Excellent quality and second mile service

This well seal is a stellar product at a great price. I needed a larger drop pipe and asked for dimensions. Jose went to the warehouse and sent me photos with tap measure. I ordered and it came quickly. I machined the larger hole. Turned out very nice. Hard to find that kind of service.

B
Brenda Gillette (Greensburg, US)
Well Seal Assembly

Everything we needed.

S
Sean

Items I received are fantastic. Glad I got them. Really work well

R
Rogelio Hernandez (Orangevale, US)

Stainless Steel Well Seal Assembly

J
John Daniel (Jacksonville, US)
4 inch stainless well seal

Easy to install, tight fit with expanded seal, stainless steal will last a life time.

A
Audie Cundiff

Great service

C

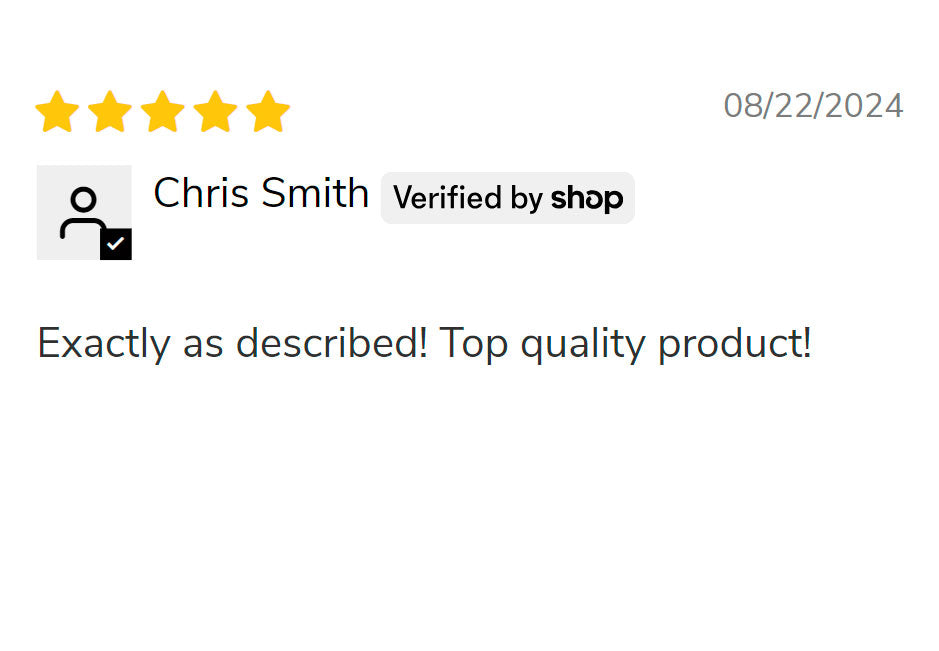

Chris
