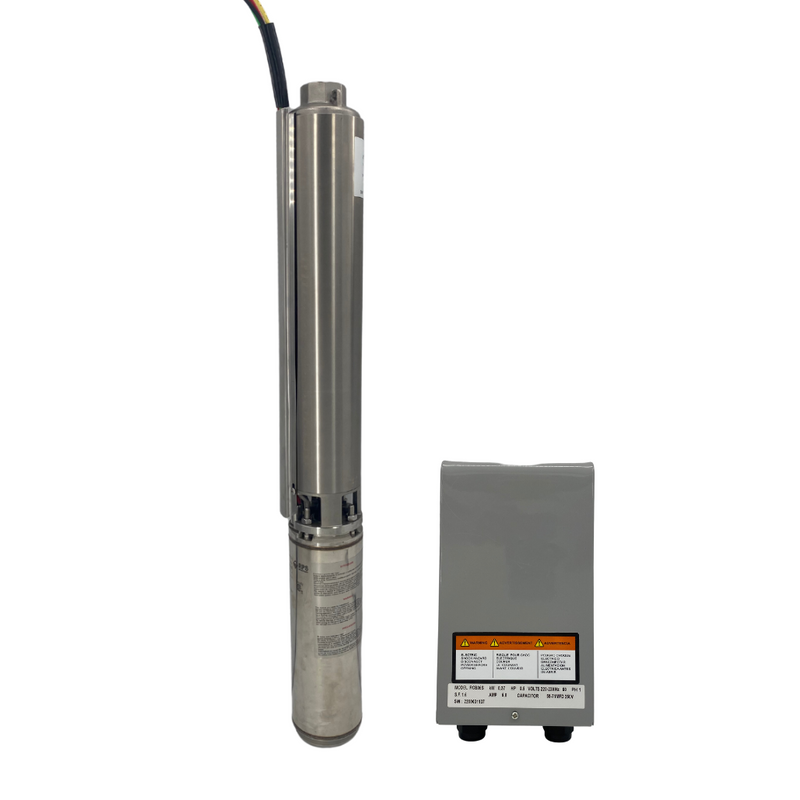

RPS 2HP 25RPS20, Up to 400ft Head, 14 to 31GPM, Deep Well Submersible Pump End + 2HP 220V Motor + Starter Box
BONUS $25 Off When You Size with an RPS Pump Tech. Call 855-560-5670 M-F 8AM to 430PM PST
25RPS series pumps are designed for flow applications of 31 GPM or under. They can be self-installed or placed using a local installer. At 300 feet of head the 25RPS20 will pump 25.5 GPM!

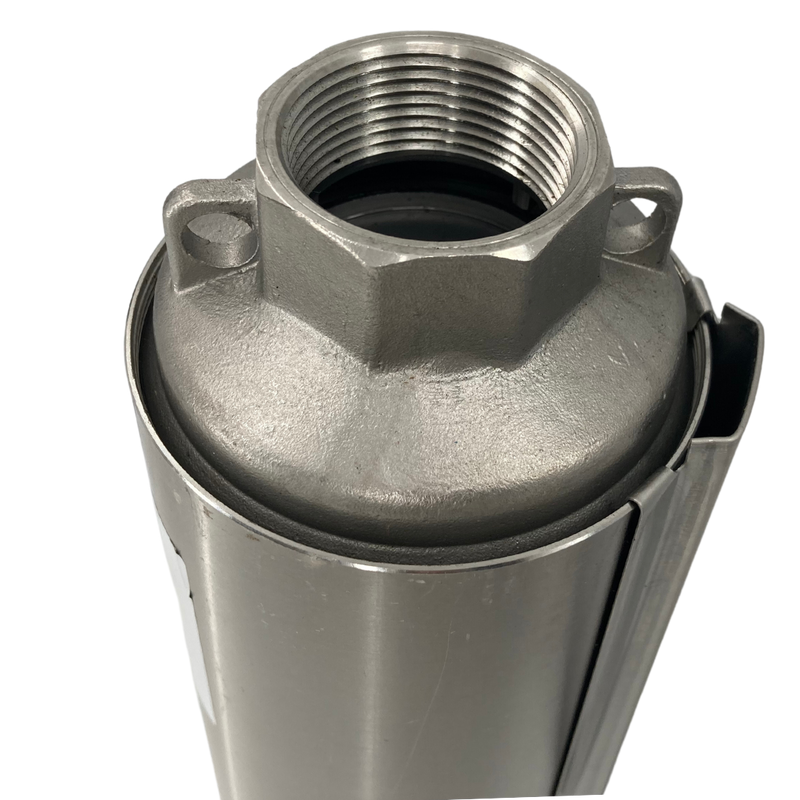

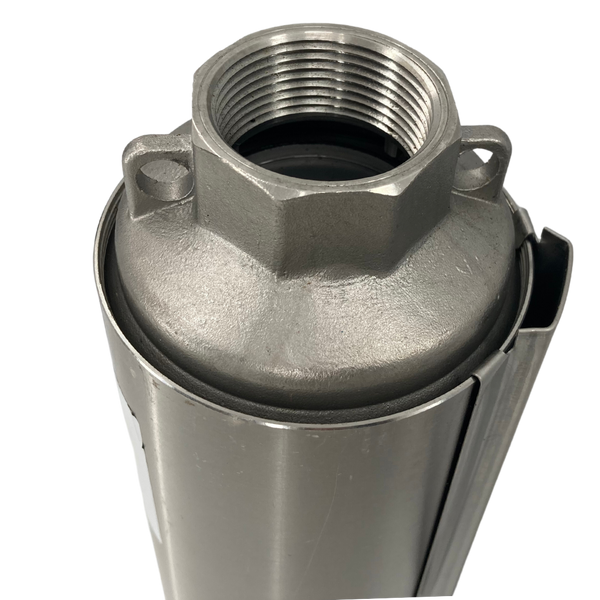

This RPS pump uses a hearty 3 Wire Single Phase 2HP Motor and 3.85″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.
If you're working with a deeper well setup, such as a 400ft deep well pump the 25RPS20 offers dependable performance and DIY-friendly installation.
✅ NSF Drinking Water and UL Compliant
| Total Head | Gallons Per Minute (GPM) |
| No head | 31 |
| 25 feet | 31 |
| 50 feet | 31 |
| 100 feet | 31 |
| 125 feet | 31 |
| 150 feet | 31 |
| 175 feet | 31 |
| 200 feet | 30.5 |
| 250 feet | 28 |
| 300 feet | 25.5 |
| 350 feet | 21 |
| 400 feet | 14 |
| Above 400 feet | Size Up for Optimal Performance |
Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.
10 PSI = 23 feet of head
20 PSI = 46 feet of head
30 PSI = 70 feet of head
40 PSI = 90 feet of head
50 PSI = 115 feet of head
60 PSI = 140 feet of head
Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
Need more water? Check out the other 25RPS Series Models!
Specs
- 304 Stainless Steel Construction
- Centrifugal Pump End
- 1.25" FNPT outlet
- Length 30.35 in
- Weight 40.6 lb
- Stages 11
- 3.85" Diameter, made to fit in well casing 4 inches wide and larger
- RPS Water Pumps Spec Sheet + Pump Curves
What's Included
- Stainless Steel Pump End
- Stainless Steel Motor End (w/ 6ft of wire pigtail)
- Pump-Safe Starter Box

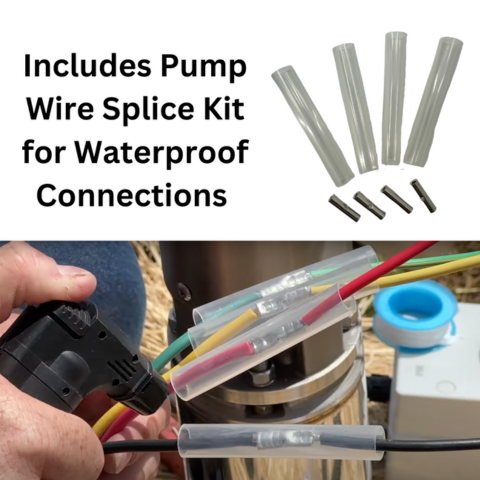

- Splice Kit for Pump Cable
- RPS Water Pumps Manual
