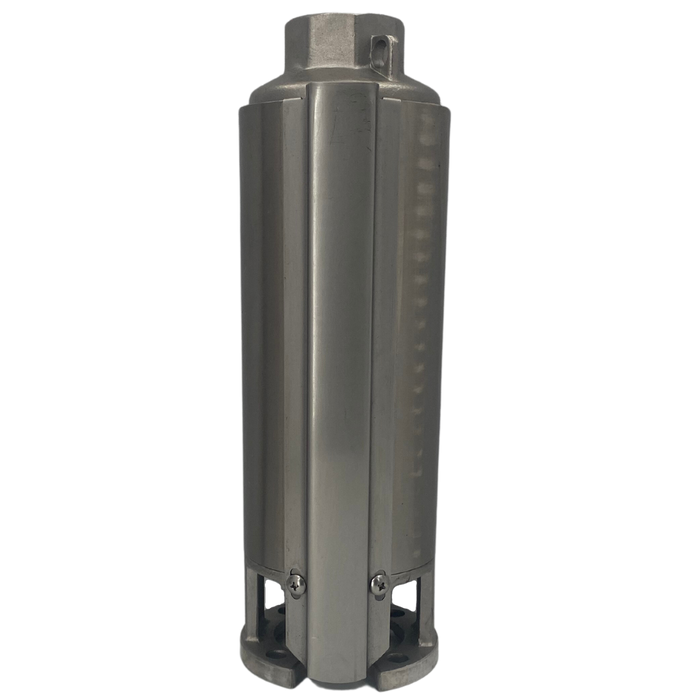

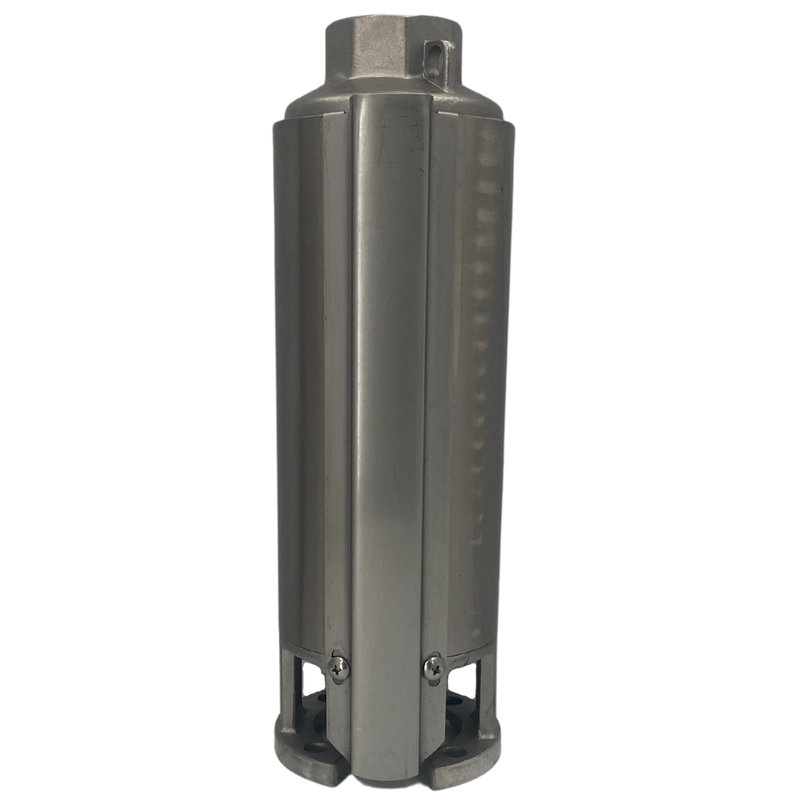

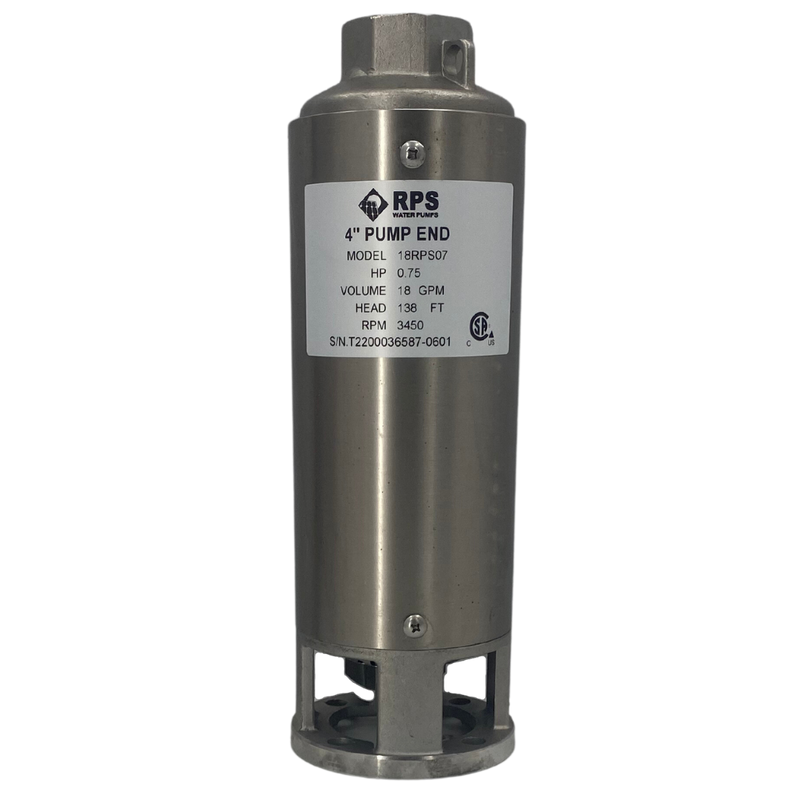

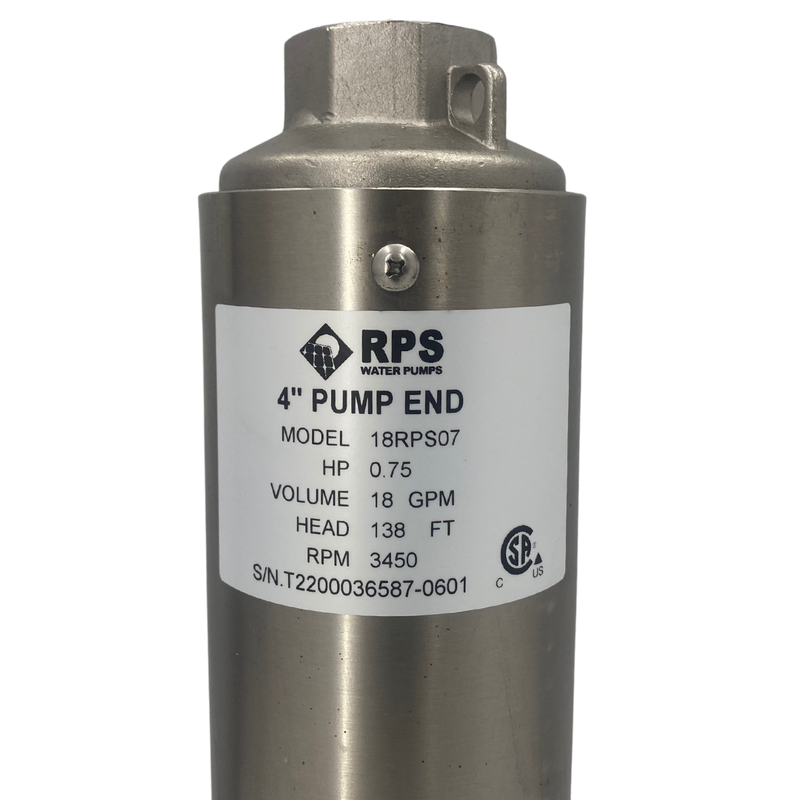

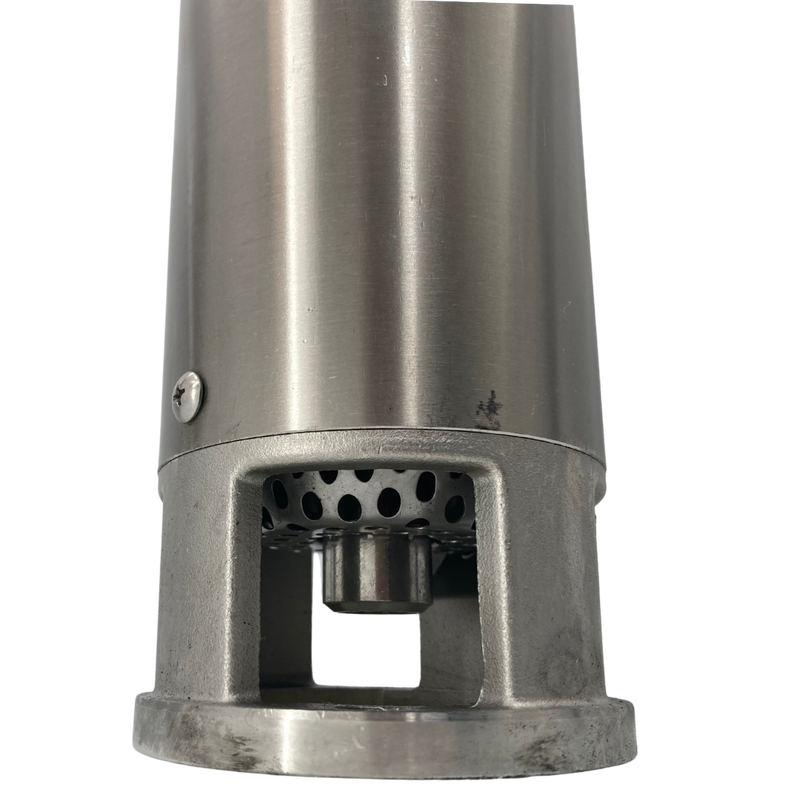

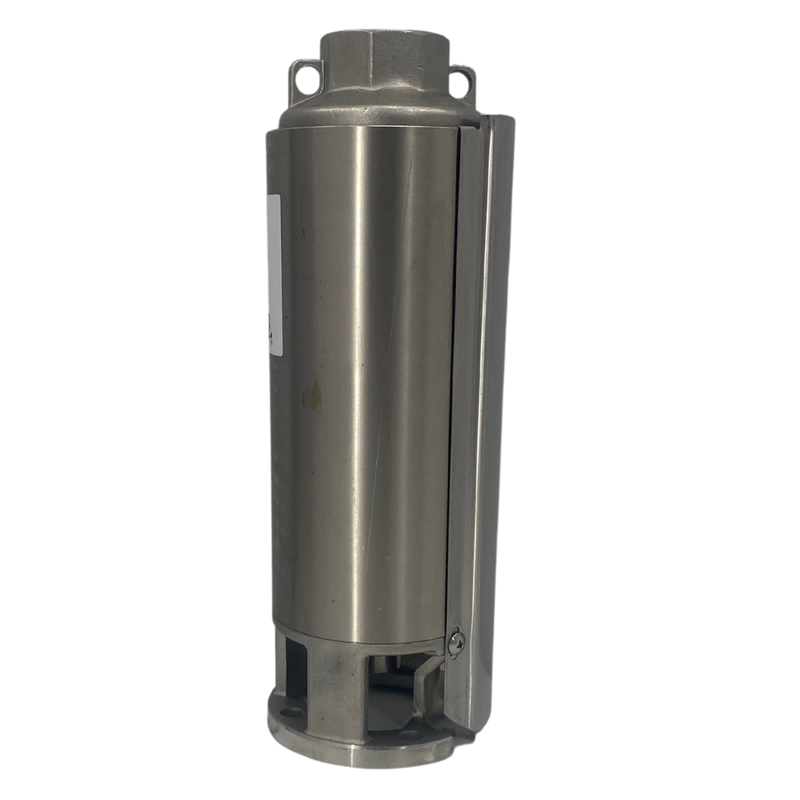

18RPS07 Pump End, 21-29GPM
BONUS $50 Off When You Size with an RPS Pump Tech. Call 855-560-5670 M-F 8AM to 430PM PST
A 21-29GPM Pump End, made from hardy stainless steel construction. Paired with a 3/4HP motor end, shop RPS motor ends here.
Compatible with motors from brands such as Franklin Electric, Goulds, Grundfos, Pentair and Berkley.
✅ NSF Drinking Water and UL Compliant

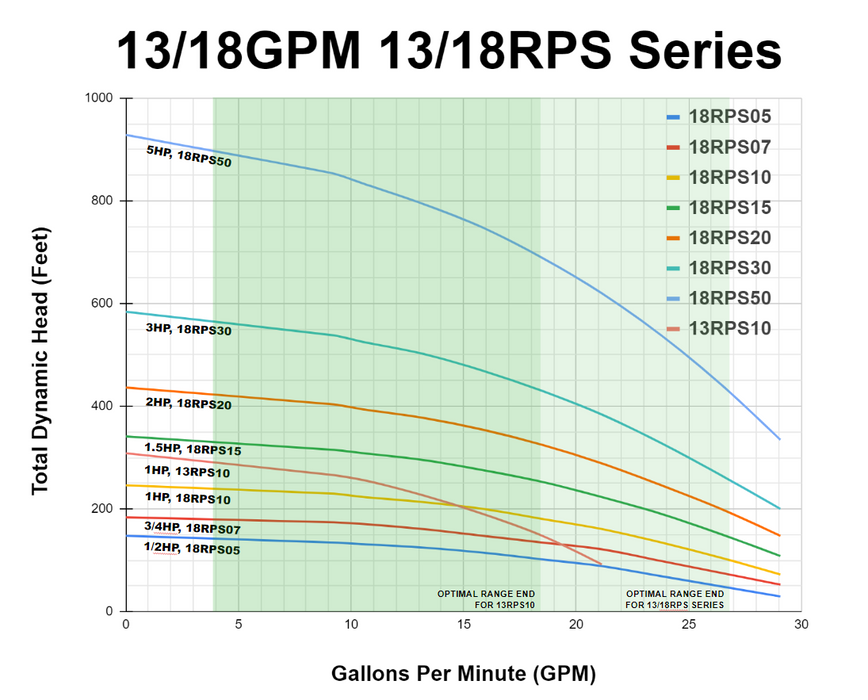

Total Head | Gallons Per Minute (GPM) |
No head | 29 |
25 feet | 29 |
50 feet | 26 |
100 feet | 23 |
125 feet | 21 |
Above 100 feet | Size Up for Optimal Performance |
Specs
- 304 Stainless Steel Construction
- Centrifugal Pump End

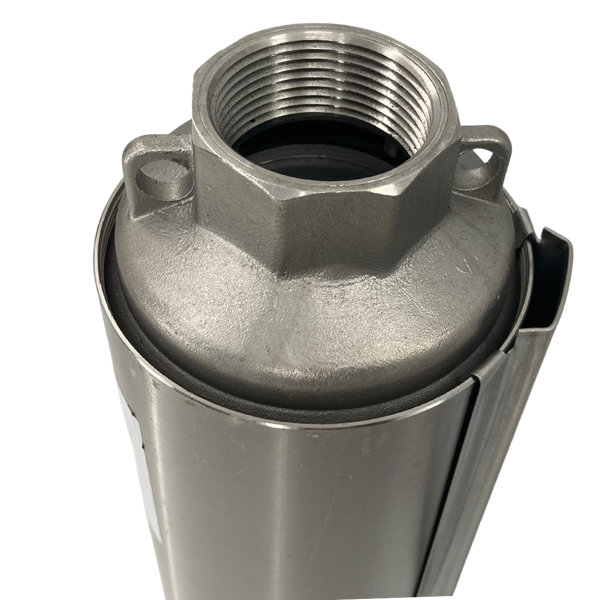

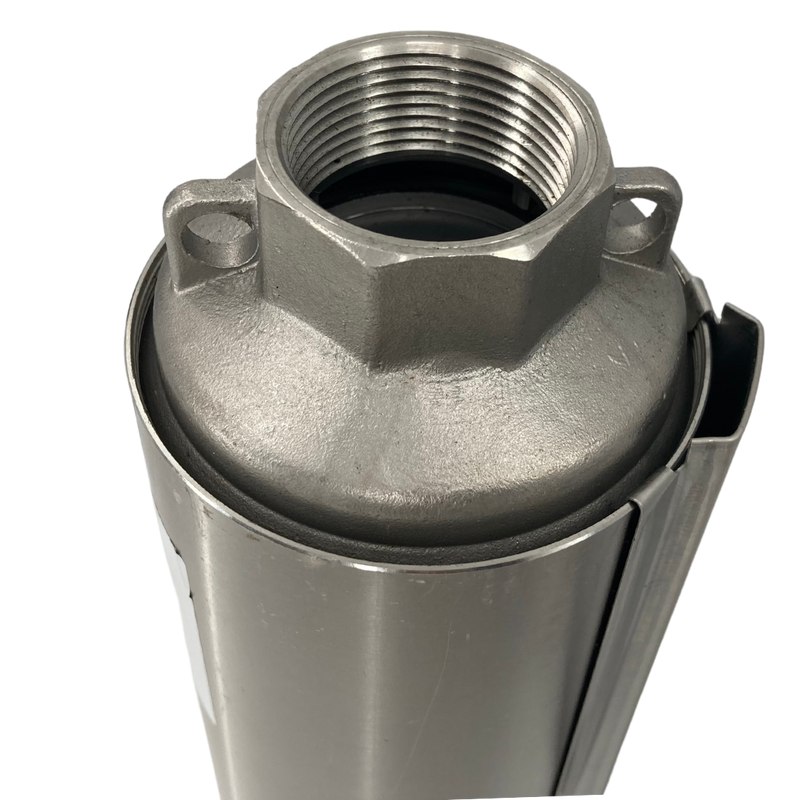

- 1.25" FNPT outlet
- Length 10.98 in
- Weight 6.2 lb
- Stages 6
- 3.86" Diameter, made to fit in well casing 4 inches wide and larger
- RPS Water Pumps Spec Sheet + Pump Curves
- RPS Water Pumps Submersible Manual
Frequently Asked Questions
What wire does this pump use?
Pump Wire/Cable: Only use wire that is rated as “UL Listed as Deep Well Submersible Pump Cable”. Depending on the depth of your well and the HP of your pump, you’ll typically 10 gauge 3 Conductor+Ground heavy duty flat jacketed submersible pump cable. The deeper the well, the higher gauge you’ll have to use to account for voltage drop across distances, you may need to bump up to 8 gauge.
