RPS 5HP 10RPS50, Up to 1250ft Head, 6 to 18GPM, Deep Well Submersible Pump End + 5HP 220V Motor + Starter Box

Save $2,281.00 Save $2,281.00
Original price $5,069.99
Original price $5,069.99 - Original price $5,069.99
Original price $5,069.99
Current price $2,788.99
$2,788.99 - $2,788.99
Current price $2,788.99

BONUS $50 Off When You Size with an RPS Pump Tech. Call 855-560-5670 M-F 8AM to 430PM PST

10RPS series pumps are designed for low flow applications of 18 GPM or under. They can be self-installed or placed using a local installer. At 900 feet of head the 10RPS50 will pump 12.5 GPM, and its ability range extends up to an astonishing 1,250 feet of total head!

This RPS pump uses a hearty 3 Wire Single Phase 5HP Motor and 3.85″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.

RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.

✅  NSF Drinking Water and UL Compliant

Total Head Gallons Per Minute (GPM)
No head 18
50 feet  18
100 feet  18
150 feet  18
200 feet  18
250 feet 18
300 feet 18
350 feet 18
400 feet 17.5
450 feet 17
500 feet 16.8
550 feet 16.5
600 feet 16
650 feet 15.5
700 feet 15
750 feet 14.5
800 feet 13.6
850 feet 13
900 feet 12.5
950 feet 11.5
1,000 feet 11
1,050 feet 10.3
1,100 feet 9.5
1,150 feet 8.5
1,200 feet 7.5
1,250 feet  6
Above 800 feet  Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!

Need more water? Check out the other 18RPS Series Models!

Specs
  • 304 Stainless Steel Construction
  • Centrifugal Pump End

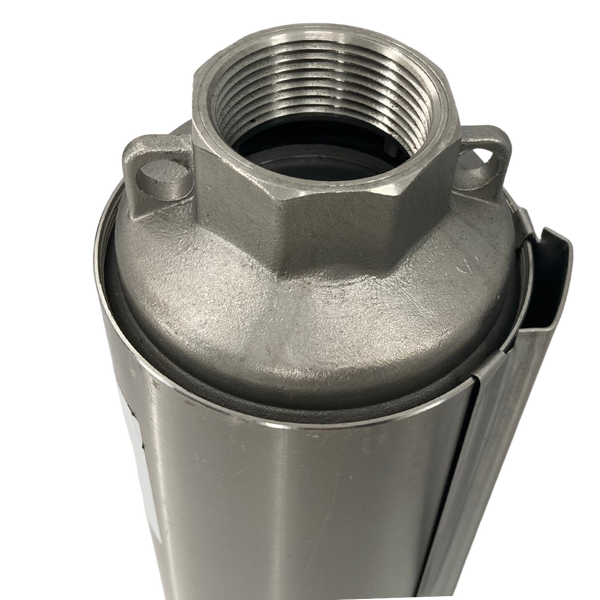

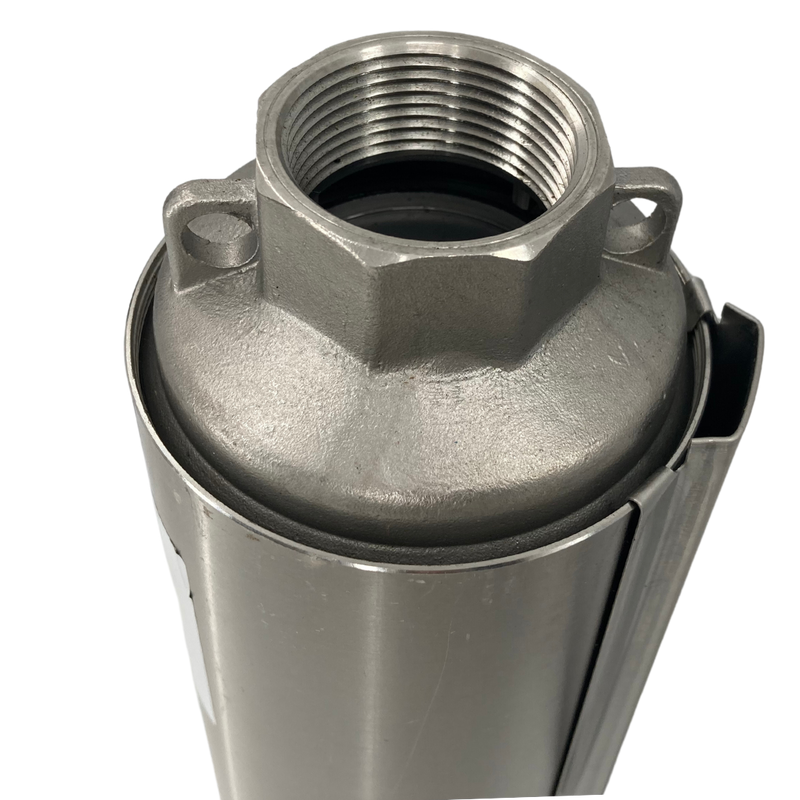

  • 1.25" FNPT outlet
  • Length 59.25
  • Weight 85
  • Stages 42
  • 3.85" Diameter, made to fit in well casing 4 inches wide and larger

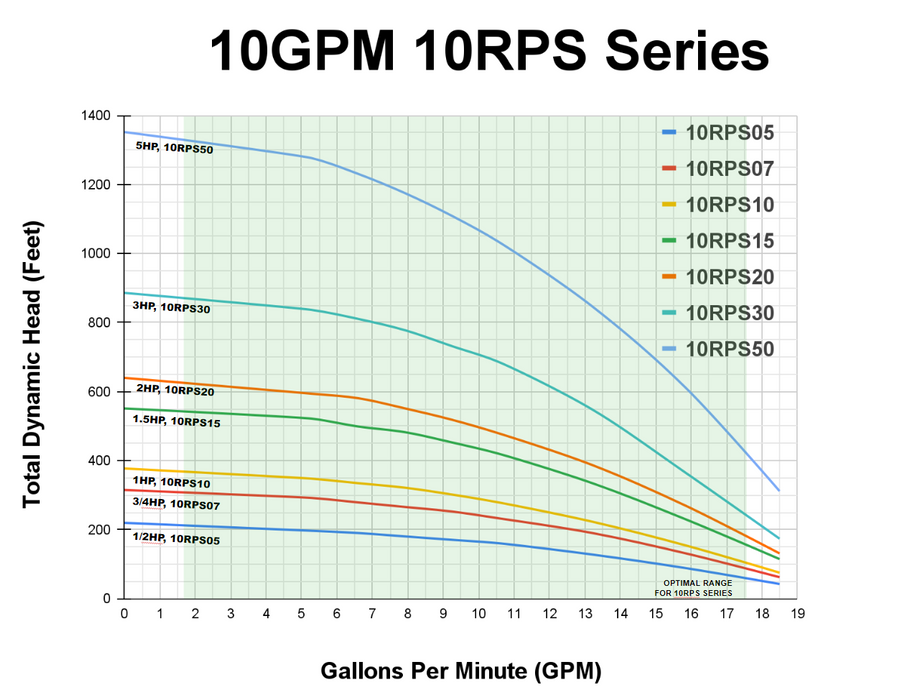

  • RPS Water Pumps Spec Sheet + Pump Curves
What's Included

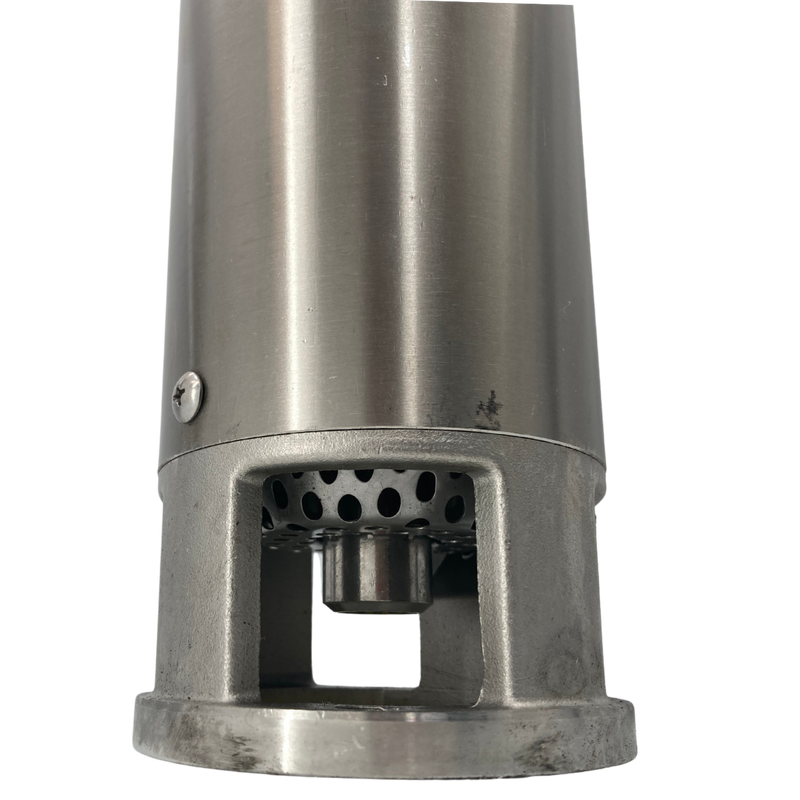

  • Stainless Steel Pump End
  • Stainless Steel Motor End (w/ 6ft of wire pigtail)

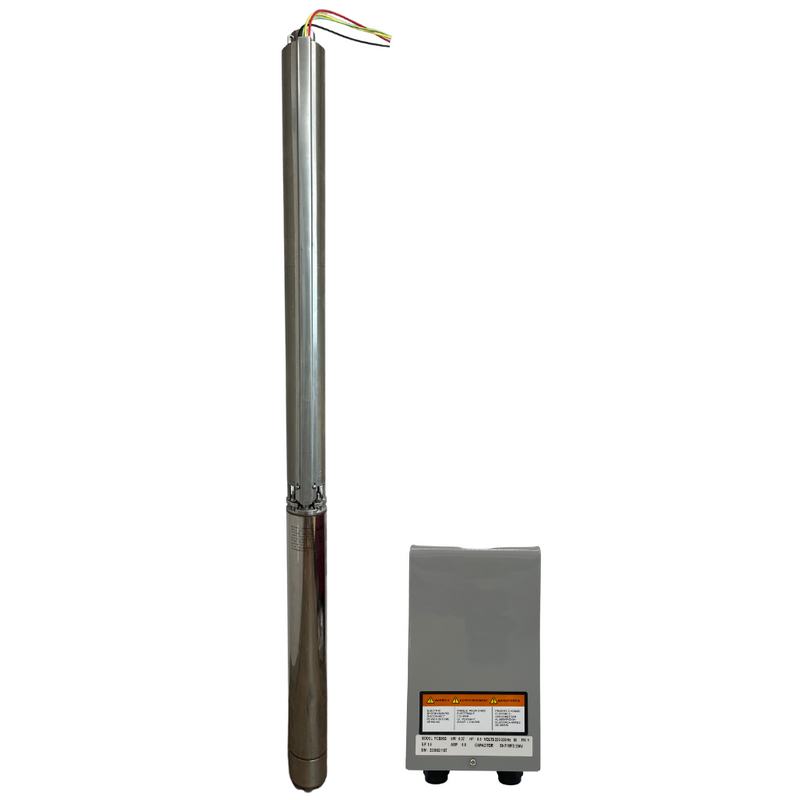

  • Pump-Safe Starter Box

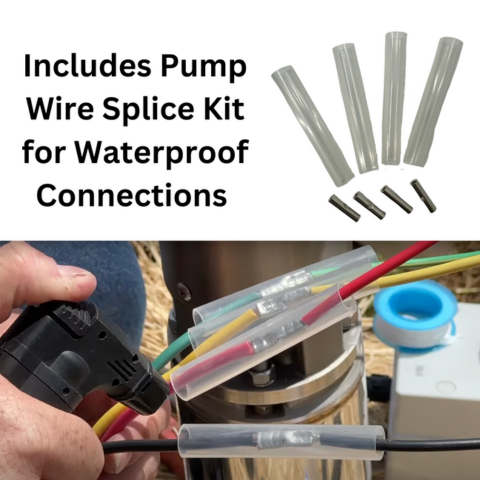

  • Splice Kit for Pump Cable
  • RPS Water Pumps Manual
Shipping, Returns and Warranty

Ultra Fast Shipping

We know how crucial getting water to your property is - that's why we offer FREE SHIPPING with every order over $100, which should arrive to your doorstep within 3-5 business days anywhere in the contiguous USA.

2-Year System Warranty:

Rural Power Systems Inc. (RPS Water Pumps) warrants to the owner for a period of twenty-four (24) months from the date of purchase (“Warranty Period”) such RPS Products will be free from material defects in material and workmanship. During the Warranty Period, RPS Water Pumps will repair or replace any defective part(s) at no cost to the owner. Learn More.

What does our Water Assurance Guarantee mean?

We offer a money back guarantee that our pump systems will provide you water when sized by one of our engineers to your well, desired setup and final total dynamic pumping head. We do require static water levels, drawdown and pressure requirements are accurately estimated during the sizing process, that installation follows the instructions of the RPS User Manual, and that you give RPS engineers a chance to troubleshoot any issues.

Returns

Customer shall inspect the RPS Product within 30 days of receipt and will be deemed to have accepted the RPS Product unless you notify RPS Water Pumps of your intent to return the product. You may return the RPS Products purchased, for any reason, for a full refund up to thirty (30) days after the date of purchase. The RPS Products must be unused, in new condition, and you must pay the return shipping or return to product to RPS Water Pumps in person. For your convenience, we are happy to email printable shipping labels and deduct the cost (often a discounted rate vs. retail store rate) from your refund amount.

After 30 days and up to sixty (60) days after purchase, a full refund is not available, but transferrable store credit is available for returned products. Unfortunately, we do not accept returns past 60 days and are unable to offer refunds, however, your product warranty is transferable in event the system is sold during the Warranty Period.

As a condition of this return policy, you agree to give us the opportunity to troubleshoot the issue(s) with the RPS Product to work out any issues prior to return.

Free Shipping on Orders $100+

Need a Pump ASAP? 2nd Day Air Available

Rather a Friendly Voice? Not Sure on Sizing?

Our famous support team is here to help! Call us at 855-560-5670

Take a Closer Look...

40RPS50 5HP Submersible Pump

100% Stainless Steel Pumps

40RPS50 5HP Submersible Pump

100% Stainless Steel Pumps

40RPS50 5HP Submersible Pump

100% Stainless Steel Pumps

RPS Laser Welded Construction

No Plastic Parts

Other pump companies use a mix of plastic and sub-par metal parts to construct their pumps, often those parts crack or break within a few months. RPS only uses anti-rust stainless steel.

Water Tight Motor Housing

Laser welding the top and bottom of the motor housing results in a superior watertight seal that protects your pump. No leaks!
