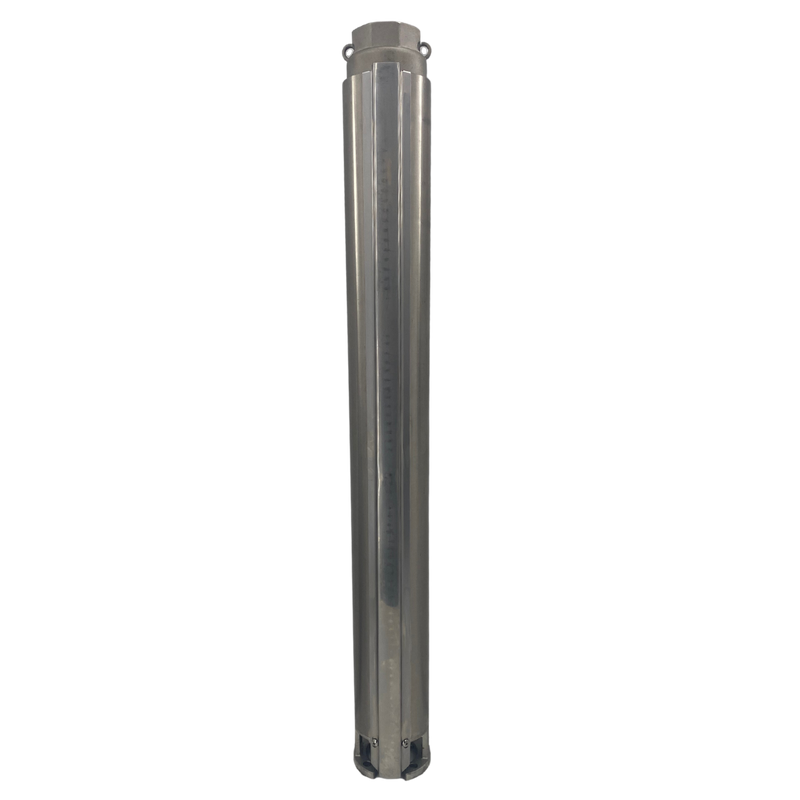

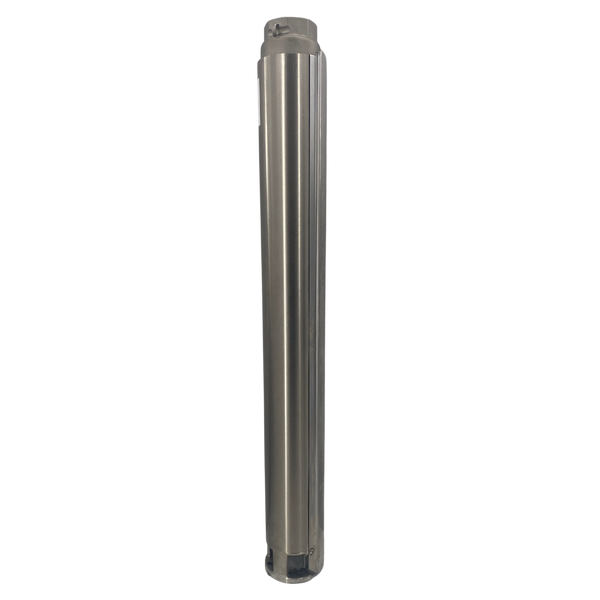

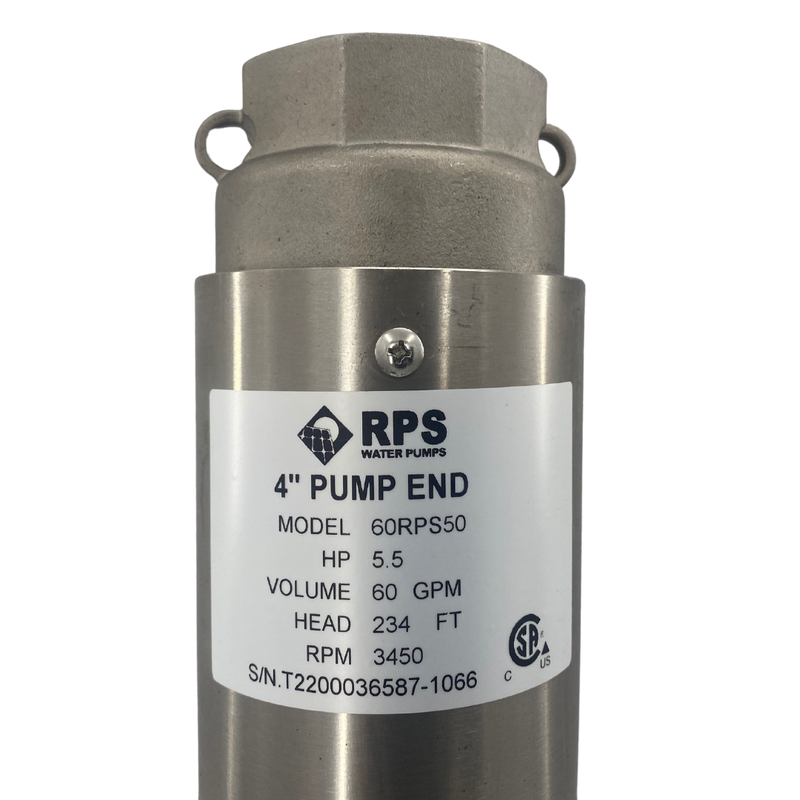

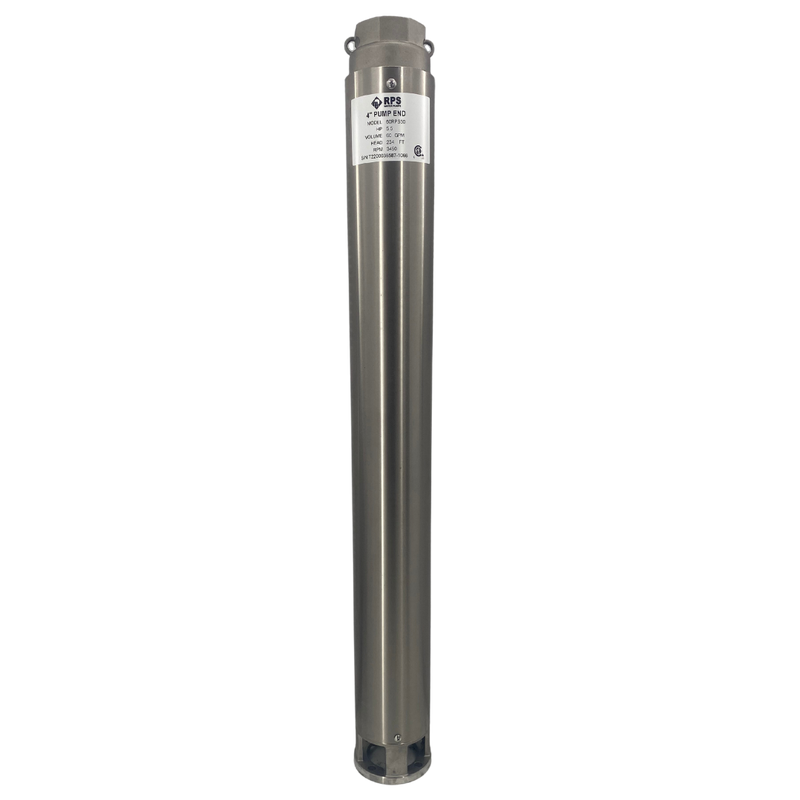

60RPS50 Pump End, 35-90GPM

Save $1,463.00 Save $1,463.00
Original price $2,925.99
Original price $2,925.99 - Original price $2,925.99
Original price $2,925.99
Current price $1,462.99
$1,462.99 - $1,462.99
Current price $1,462.99

BONUS $50 Off When You Size with an RPS Pump Tech. Call 855-560-5670 M-F 8AM to 430PM PST

A 35-90GPM Pump End, made from hardy stainless steel construction. Paired with a 5HP motor end, shop RPS motor ends here.

Compatible with motors from brands such as Franklin Electric, Goulds, Grundfos, Pentair and Berkley.

RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.

✅  NSF Drinking Water and UL Compliant

Total Head Gallons Per Minute (GPM)
No head 90
25 feet 90
50 feet  90
75 feet  90
100 feet  85
125 feet 80
150 feet 75
175 feet 70
200 feet 55
225 feet 55
250 feet 45
275 feet 35
Above 275 feet  Size Up for Optimal Performance
  • 304 Stainless Steel Construction

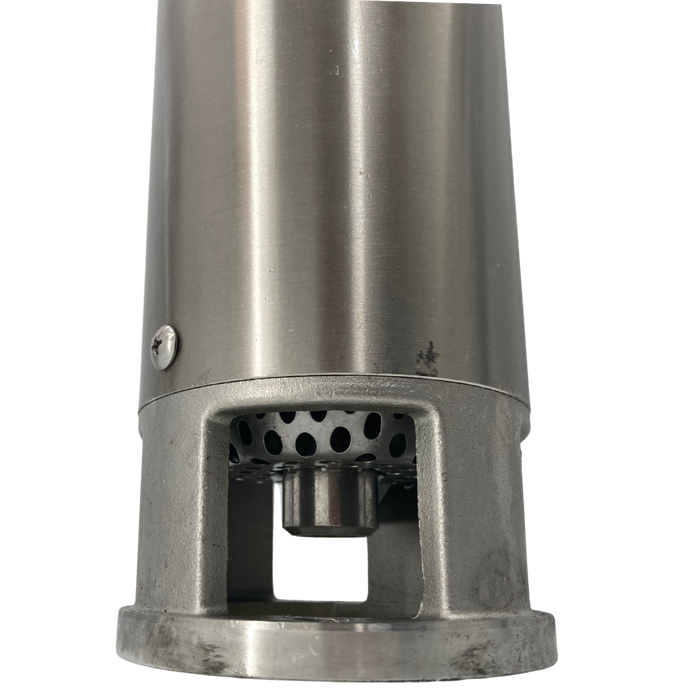

  • Centrifugal Pump End

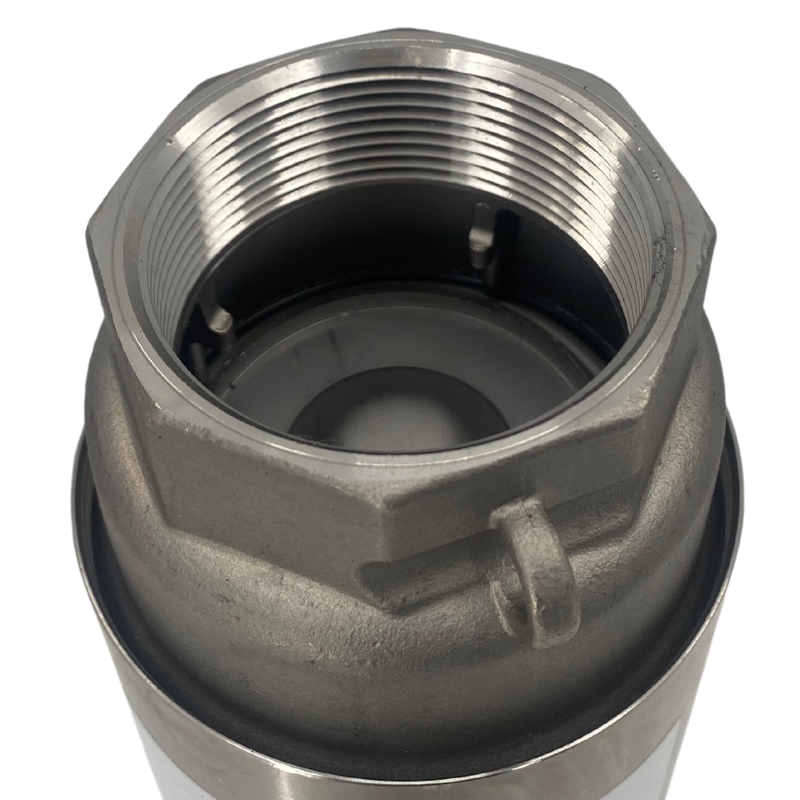

  • 1.25" FNPT outlet
  • Length 29.21 in
  • Weight 15.9 lb
  • Stages 11
  • 3.86" Diameter, made to fit in well casing 4 inches wide and larger

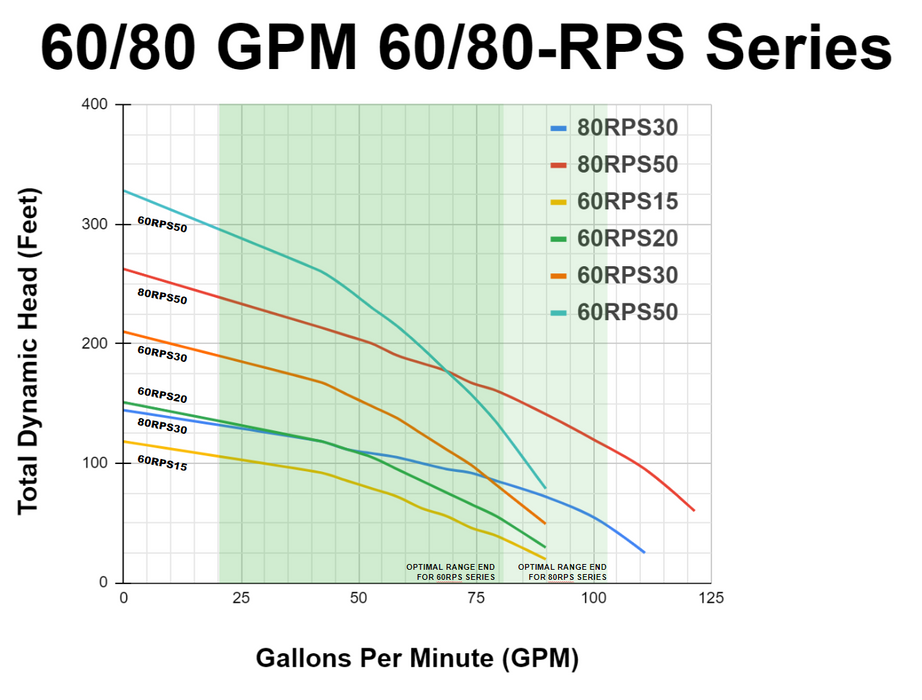

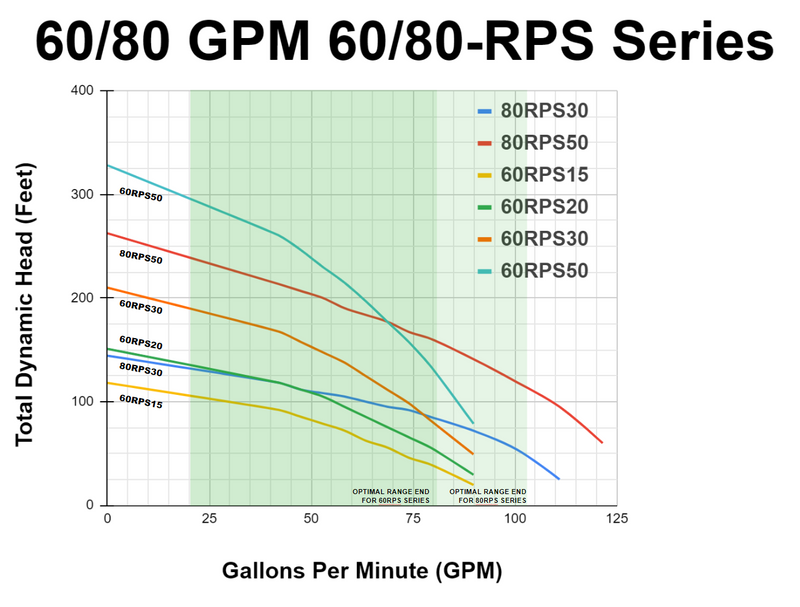

  • RPS Water Pumps Spec Sheet + Pump Curves
Frequently Asked Questions

What wire does this pump use?

Pump Wire/Cable: Only use wire that is rated as “UL Listed as Deep Well Submersible Pump Cable”. Depending on the depth of your well and the HP of your pump, you’ll typically 10 gauge 3 Conductor+Ground heavy duty flat jacketed submersible pump cable. The deeper the well, the higher gauge you’ll have to use to account for voltage drop across distances, you may need to bump up to 8 gauge.
